Fog/Driving Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper.

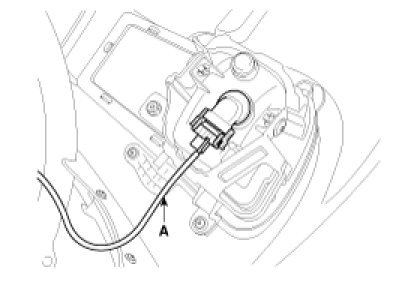

3. Remove the front fog lamp assembly connector(A).

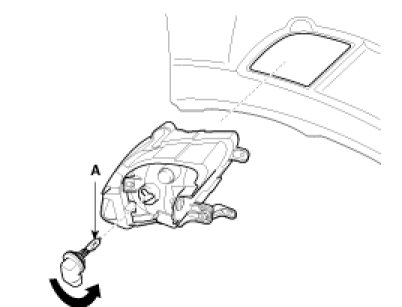

4. Remove the front fog lamp bulb(A) turning in the counter clock-wise direction.






Installation

1. Install the front fog lamp bulb.
2. Connect the front fog lamp connector.
3. Install the front bumper.
