Starter Test Procedure

Starter Test Procedure

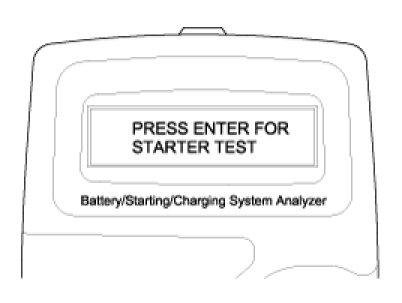

1. After the battery test, press ENTER immediately for the starter test.

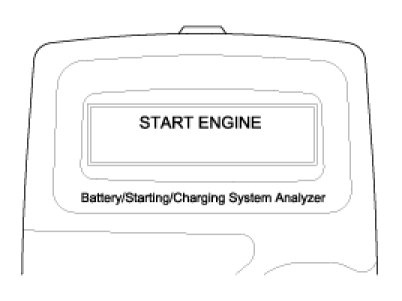

2. Start the engine.

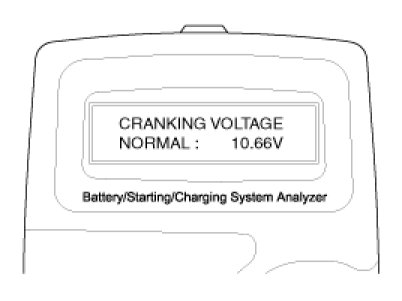

3. Cranking voltage and starter test results will be displayed on the screen.
Refer to the following table and take the appropriate action as recommended by the Micro 570.




Starter Test Results






NOTE:
When testing the vehicle with old diesel engines, the test result will not be favorable if the glow plug is not heated. Conduct the test after warming up the engine for 5 minutes.
