Automatic Transaxle System - A5CF2
>>
Automatic Transaxle
>>
Components and Component Locations
>>
Components (1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components (1)

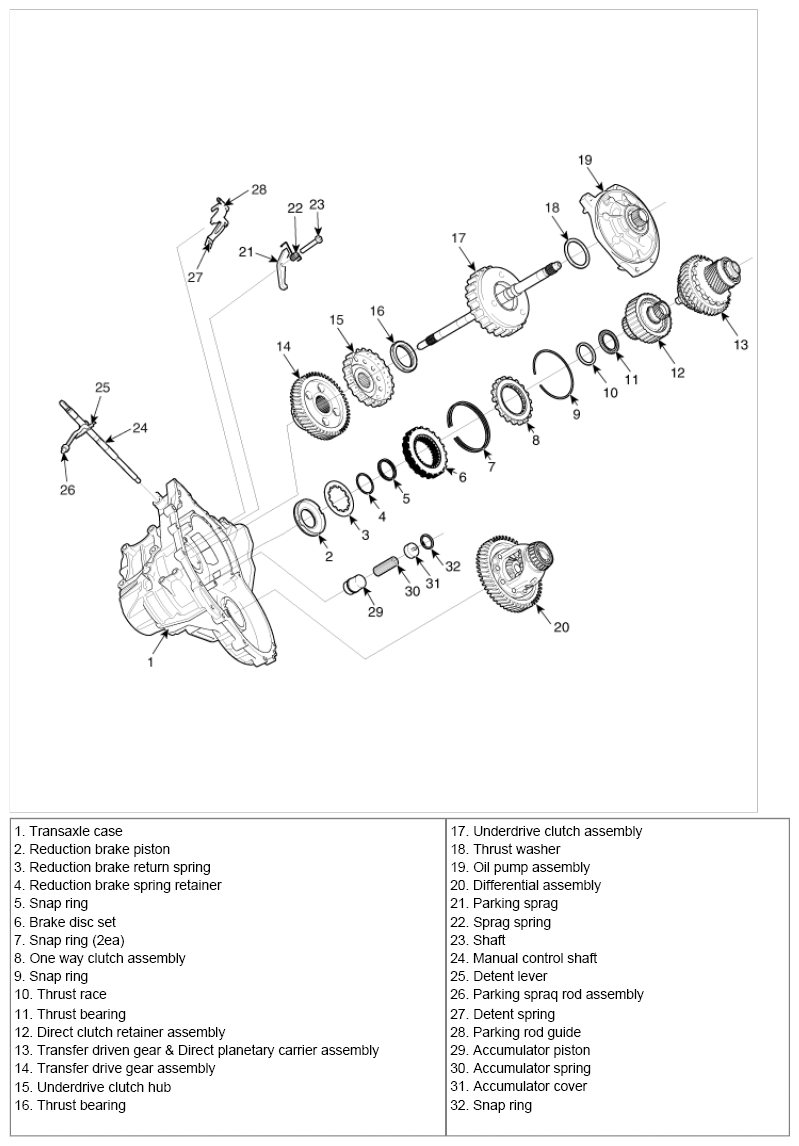

Fig 1: Identifying Automatic Transaxle Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
