Repair procedures: Installation

Lowering the vehicle or lifting up a jack, install the transmission assembly.
CAUTION: Be careful not to damage tubes, hoses or wire.
Install the transaxle lower mounting bolts.
Tightening torque:

43~49Nm (4.3~4.9kgf.m, 31.1~35.4lb-ft)

Fig 1: Identifying Transaxle Lower Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the torque converter assembly mounting bolts (A-4ea).
Tightening torque:

46~53Nm (4.6~5.3kgf.m, 33.3~38.3lb-ft)

Fig 2: Identifying Torque Converter Assembly Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the torque converter cover.
Supporting the sub frame (A) with a jack and the special tool (09624-38000), install the mounting bolts. (Refer to FRONT SUSPENSION SYSTEM )

Fig 3: Supporting Sub Frame With Jack & Special Tool
Courtesy of KIA MOTORS AMERICA, INC.

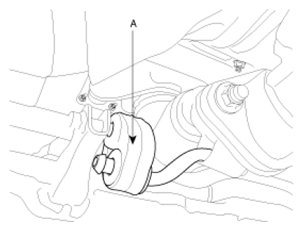

Install the muffler hanger rubber (A).

Fig 4: Identifying Muffler Hanger Rubber
Courtesy of KIA MOTORS AMERICA, INC.
Connect the drive shafts (A, B) from the transaxle

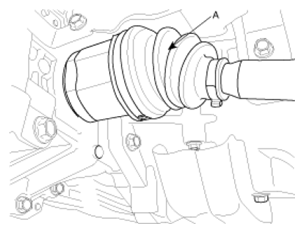

Fig 5: Identifying Drive Shafts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

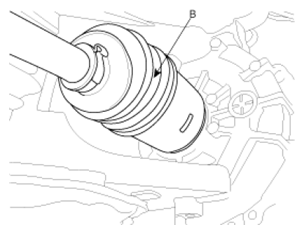

Fig 6: Identifying Drive Shafts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Install the front and rear roll stopper mounting bolts (A, B).
Tightening torque:

50~65Nm (5~6.5kgf.m, 36.2~47.0lb-ft)

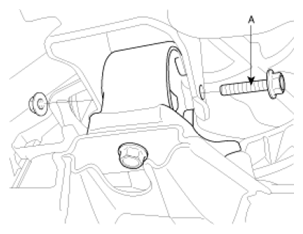

Fig 7: Identifying Front Roll Stopper Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

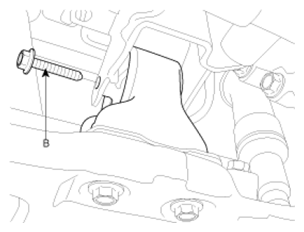

Fig 8: Identifying Rear Roll Stopper Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install the lower arm ball joint mounting nut, the stabilizer link mounting nut, and the tie rod end mounting nut to the front knuckles. (Refer to FRONT SUSPENSION SYSTEM )
Install the side cover in the driver's side.
Install the front wheels and tires. (Refer to TIRES/WHEELS/WHEEL ALIGNMENT )

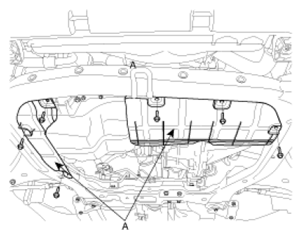

Install the under cover (A).

Fig 9: Identifying Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install the steering joint assembly bolt (A). (Refer to HYDRAULIC POWER STEERING SYSTEM or ELECTRIC POWER STEERING )

Fig 10: Identifying Steering Joint Assembly Bolt
Courtesy of KIA MOTORS AMERICA, INC.

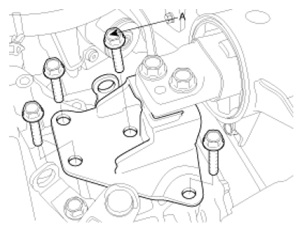

Install the transaxle mounting support bracket bolts (A-4ea).
Tightening torque:

90~110Nm (9.0~11.0kgf.m, 65.1~76.6lb-ft)

Fig 11: Identifying Transaxle Mounting Support Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.

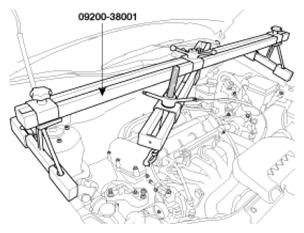

Remove the special tool (09200-38001).

Fig 12: Identifying Special Tool (09200-38001)
Courtesy of KIA MOTORS AMERICA, INC.

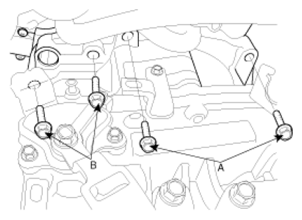

Install the transaxle upper mounting bolts (A-2ea) and the starter motor mounting bolts (B-2ea).
Tightening torque:

[A]43~55Nm (4.3~5.5kgf.m, 31.1~39.8lb-ft)

[B]43~55Nm (4.3~5.5kgf.m, 31.1~39.8lb-ft)

Fig 13: Identifying Transaxle Upper Mounting Bolts & Starter Motor Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Connect the transaxle oil cooler hoses (A) to the tubes by fastening the clamps.

Fig 14: Identifying Transaxle Oil Cooler Hoses
Courtesy of KIA MOTORS AMERICA, INC.

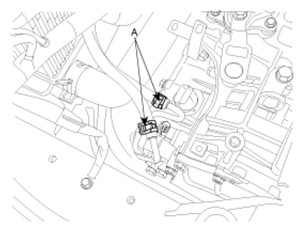

Install the output speed sensor connector (A).

Fig 15: Identifying Output Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

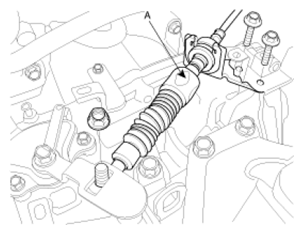

Install the shift cable assembly (A).
Tightening torque:

Bracket bolts : 15~22Nm (1.5~2.2kgf.m, 10.8~15.9lb-ft)

Nut : 10~14Nm (1.0~1.4kgf.m, 7.2~10.1lb-ft)

Fig 16: Identifying Shift Cable Assembly
Courtesy of KIA MOTORS AMERICA, INC.

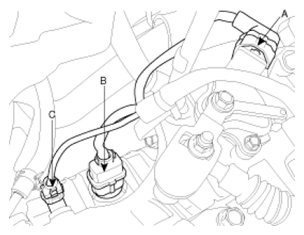

Connect the inhibitor switch connector (A), solenoid valve connector (B) and the input speed sensor connector (C).

Fig 17: Identifying Inhibitor Switch Connector, Solenoid Valve Connector, & Input Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

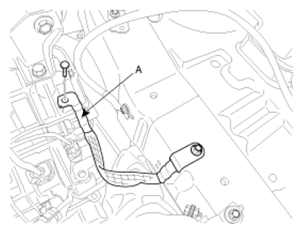

Install the ground cable (A) to transaxle.

Fig 18: Identifying Ground Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the battery tray (A).

Fig 19: Identifying Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.
After installing the air cleaner assembly (B), connect ECU connector (A).

Fig 20: Identifying Air Cleaner Assembly & ECU Connector
Courtesy of KIA MOTORS AMERICA, INC.
Connect the air duct (A).

Fig 21: Identifying Air Duct
Courtesy of KIA MOTORS AMERICA, INC.
Install the battery (A).

Fig 22: Identifying Battery
Courtesy of KIA MOTORS AMERICA, INC.
Install the engine cover (A).

Fig 23: Identifying Engine Cover
Courtesy of KIA MOTORS AMERICA, INC.
After completing the installation perform the following procedure;
1. Adjust the shift cable. (Refer to ADJUSTING THE SHIFT CABLE )
2. Refill the transaxle fluid. (Refer to TRANSAXLE FLUID LEVEL )
3. Clean the battery posts and cable terminals with sandpaper and grease them to prevent corrosion before installing.
  NOTE:
  When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.
  1. Connect the VCI cable to the data link connector under the crash pad.
  2. Turn the ignition switch on and power on the VCI.
  3. Select the vehicle's name.
  4. Select 'Automatic Transaxle'.
  5. Select 'Resetting Auto T/A Values' and perform the procedure

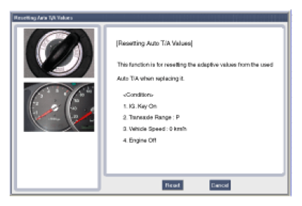

    Fig 24: GDS Screen Display - Resetting Auto T/A Values (1 Of 2)
    Courtesy of KIA MOTORS AMERICA, INC.

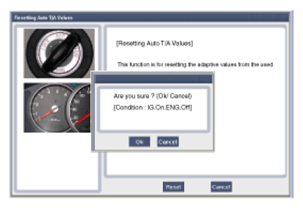

  6. Perform the procedure by clicking 'Reset' icon.

    Fig 25: GDS Screen Display - Resetting Auto T/A Values (2 Of 2)
    Courtesy of KIA MOTORS AMERICA, INC.
