Component Location

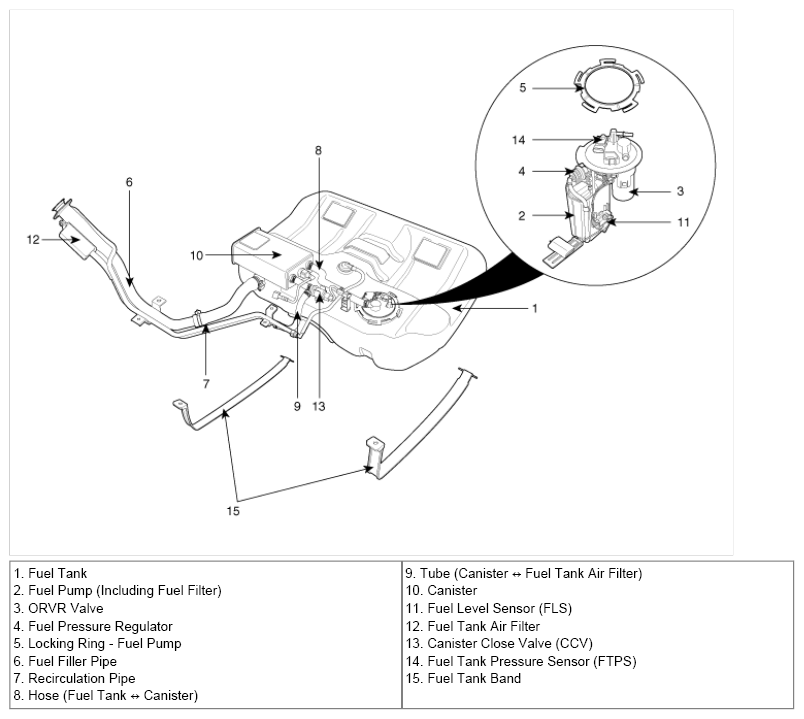

Fig 1: Identifying Fuel Delivery System Component Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
