Optima EX, 2.4 8
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle System
>>
Automatic Transaxle
>>
Components And Components Location
>>
Components (1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components (1)

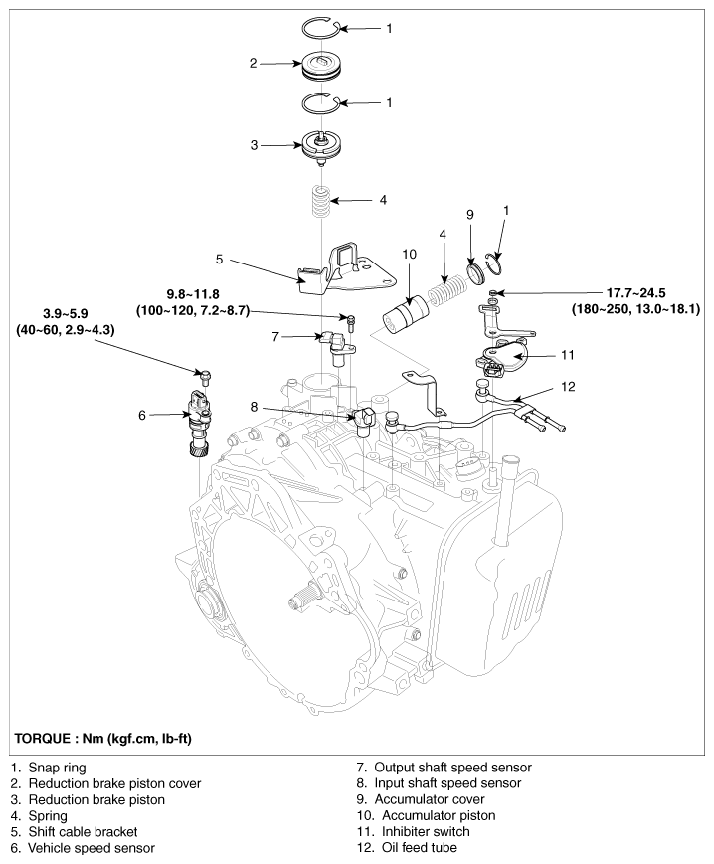

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
