Component Inspection

Measure the resistance between each terminal of the sensor

Specification:

TERMINAL RESISTANCE REFERENCE

Item	Terminal No
Resistance	1 (red) - 3 (black)	INFINITE
Resistance	2 (black) - 4 (red)
Supply (B+) to number 4 and supply (B-) to number 2.	1 (red) - 3 (black)	0 Ω

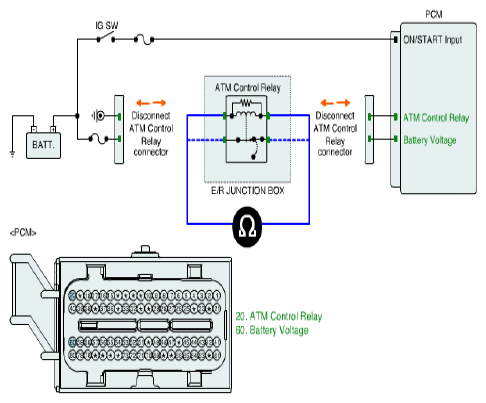

Fig 1: Measuring Resistance Between Terminals Of A/T Control Relay

Courtesy of KIA MOTORS AMERICA, INC.

Is resistance within specifications?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace ATM CONTROL RELAY and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
