Control Circuit Inspection

  1. IG "OFF".
  2. Disconnect A/C Relay.
  3. IG "ON".
  4. Measure the voltage between terminal 5 of A/C relay and ground.
    1. Specification : Approx. 11V

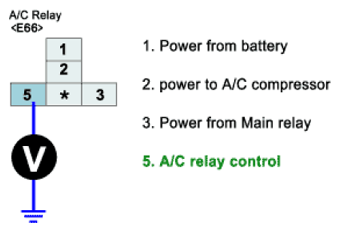

      Fig 1: Measuring Voltage Between Terminal 5 Of A/C Relay And Ground
      G06831062Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the measured voltage within specification?

    YES

    1. Go to "COMPONENT INSPECTION " procedure.

    NO

    1. Repair Short to power in A/C relay control circuit and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
