Control Harness

Control Harness:




Control Harness (M/T) Index:

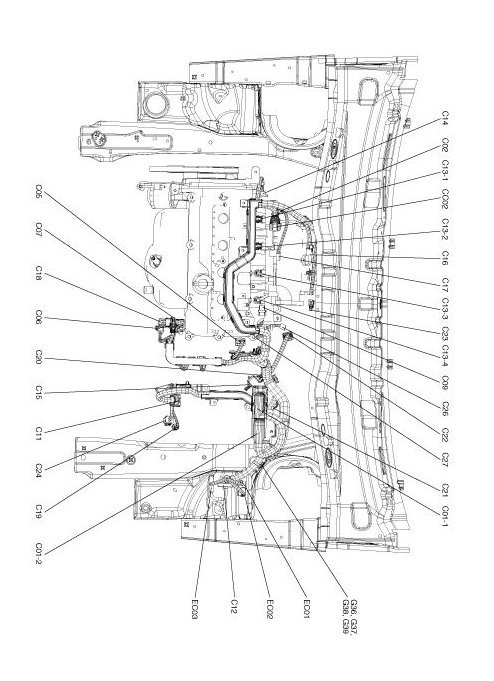

Control Harness (M/T):

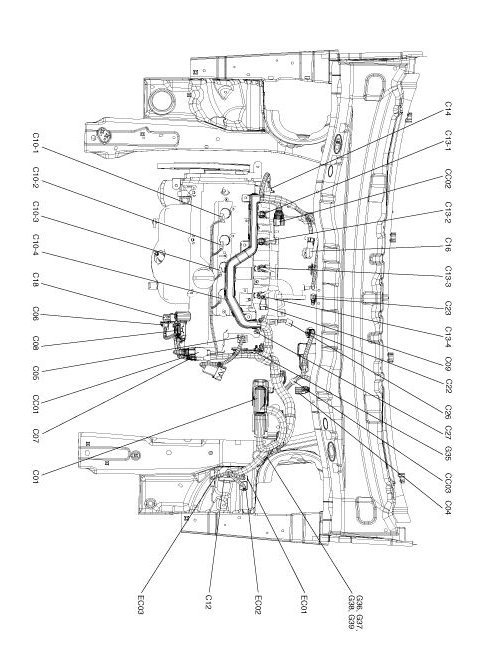

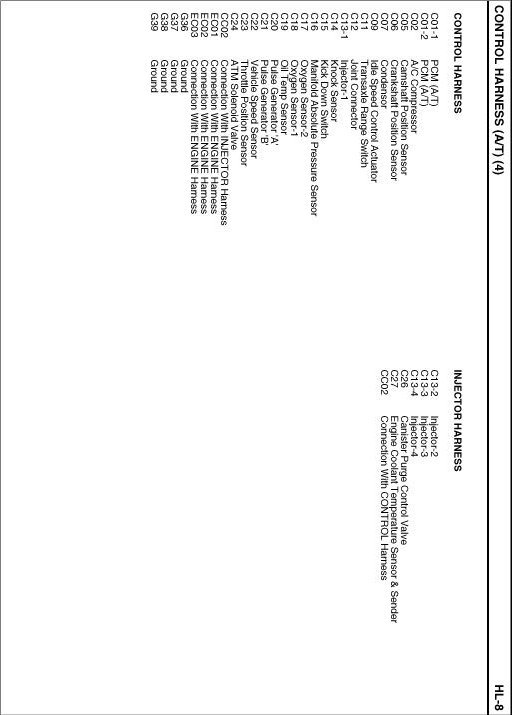

Control Harness (A/T) Index:
