Exhaust Manifold





Exhaust Manifold

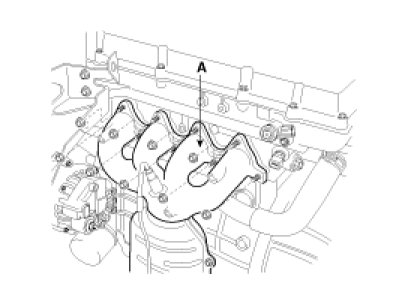

Exhaust manifold and catalytic converter assembly (A).

Tightening torque 17.7 - 24.5N.m (1.8 - 2.5kgf.m, 13.0 - 18.1lb-ft)
