Components and Components Location: Component

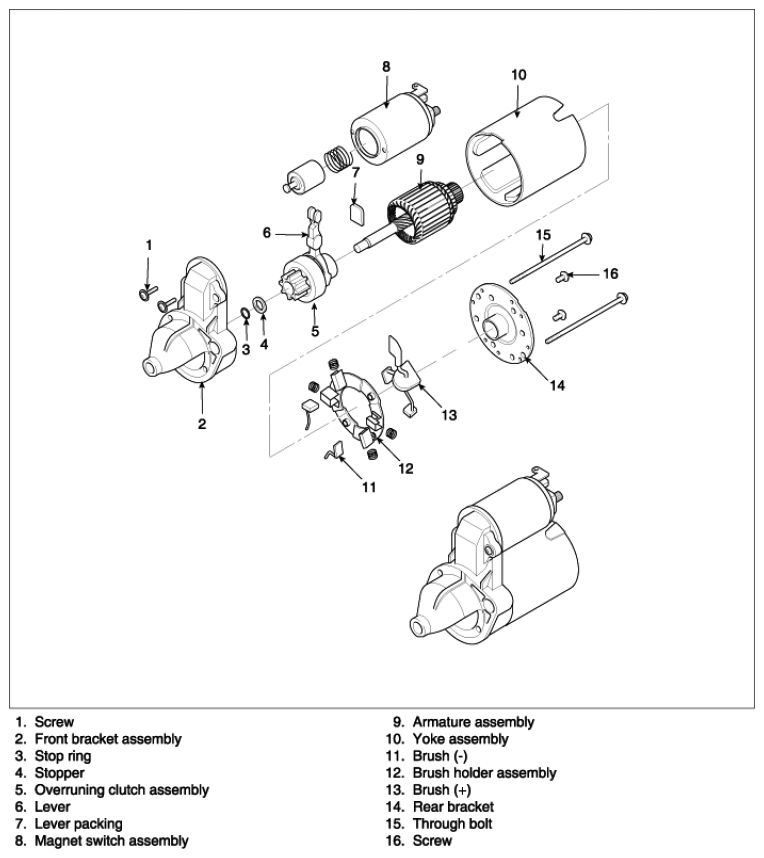

Fig 1: Identifying Starter Components
G06828707Courtesy of KIA MOTORS AMERICA, INC.
