Components and Components Location: Components

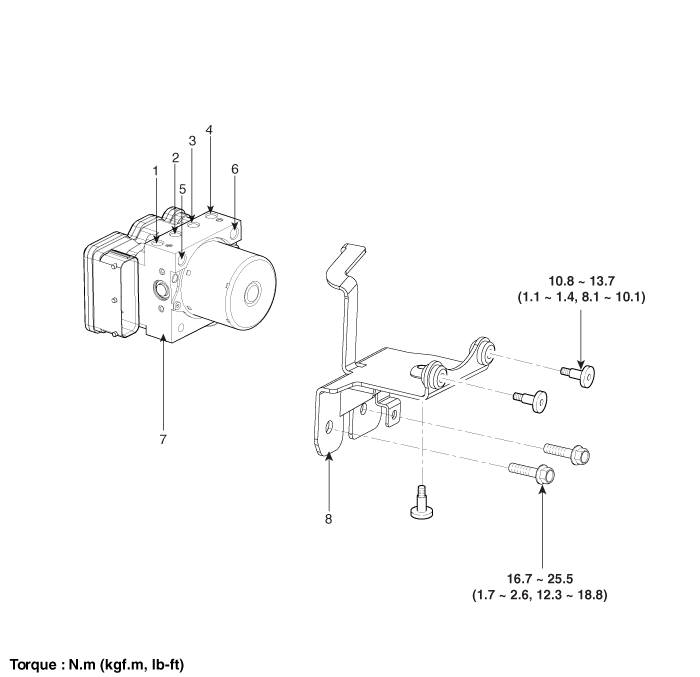

Fig 1: Identifying ABS Control Unit Components
G00492365Courtesy of KIA MOTORS AMERICA, INC.
1. Front-left tube 5. MC2
2. Rear-right tube 6. MC1
3. Rear-left tube 7. ABS control module (HECU)
4. Front-right tube 8. Bracket
