Cowl: Service and Repair
REPLACEMENT
1.

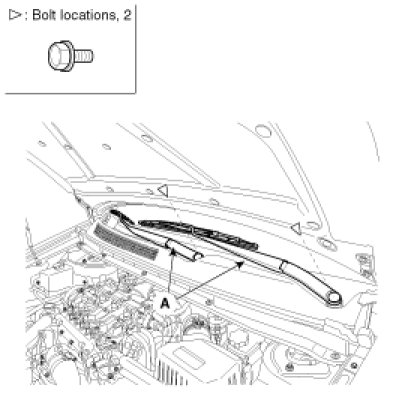

Remove the wiper (A).
2.

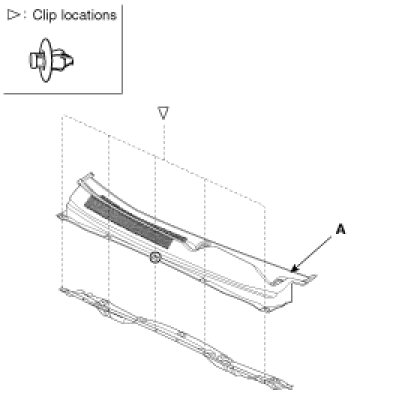

Detach the clips, then remove the cowl top cover (A).
3.
Installation is the reverse of removal.
