Components Location

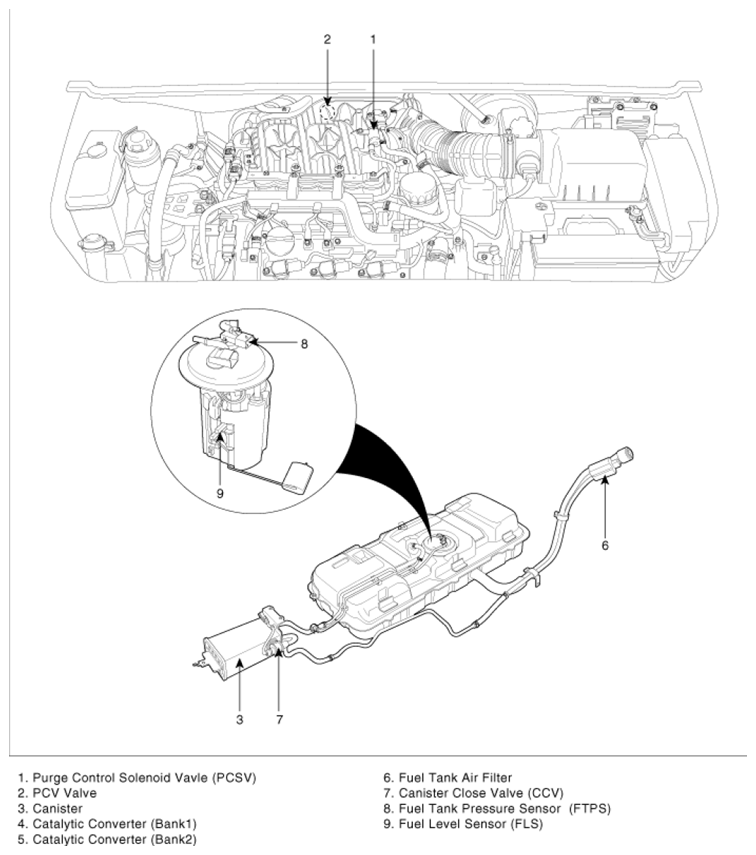

Fig 1: Emission Control System Component Location (1 Of 2)
G06838016Courtesy of KIA MOTORS AMERICA, INC.

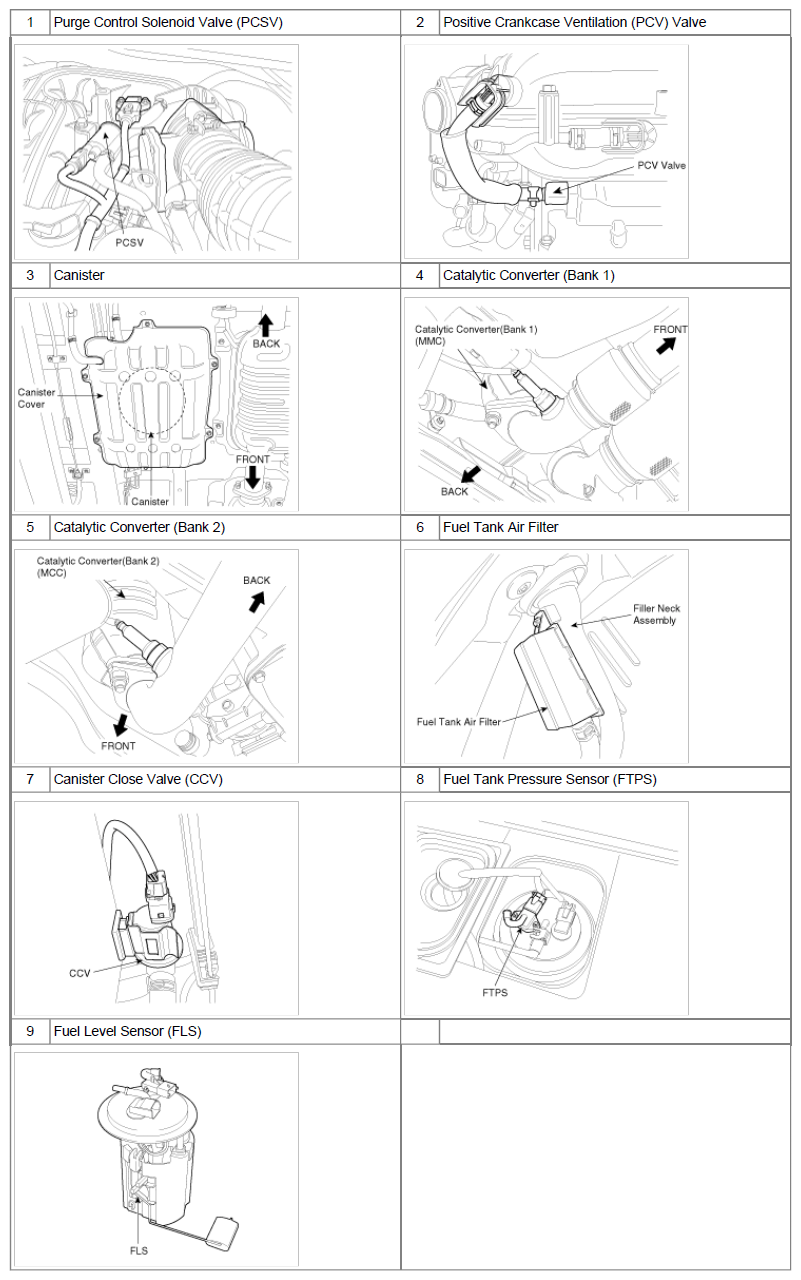

Fig 2: Emission Control System Component Location (2 Of 2)
G06838017Courtesy of KIA MOTORS AMERICA, INC.
