Engine Mechanical System And Catalytic Converter: Component

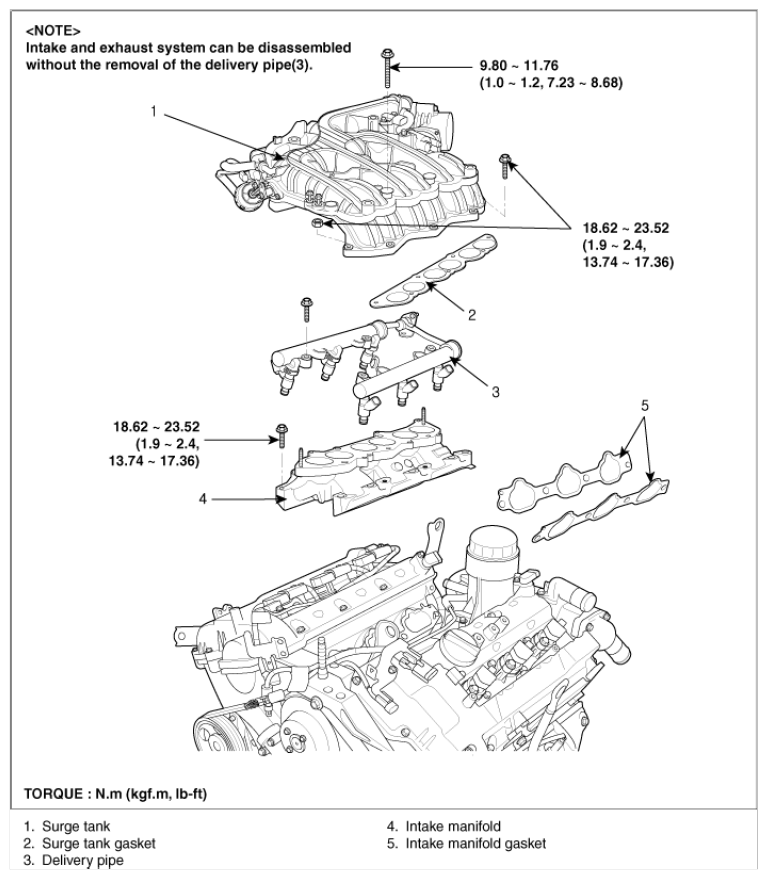

Fig 1: Intake Manifold Replacement Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.

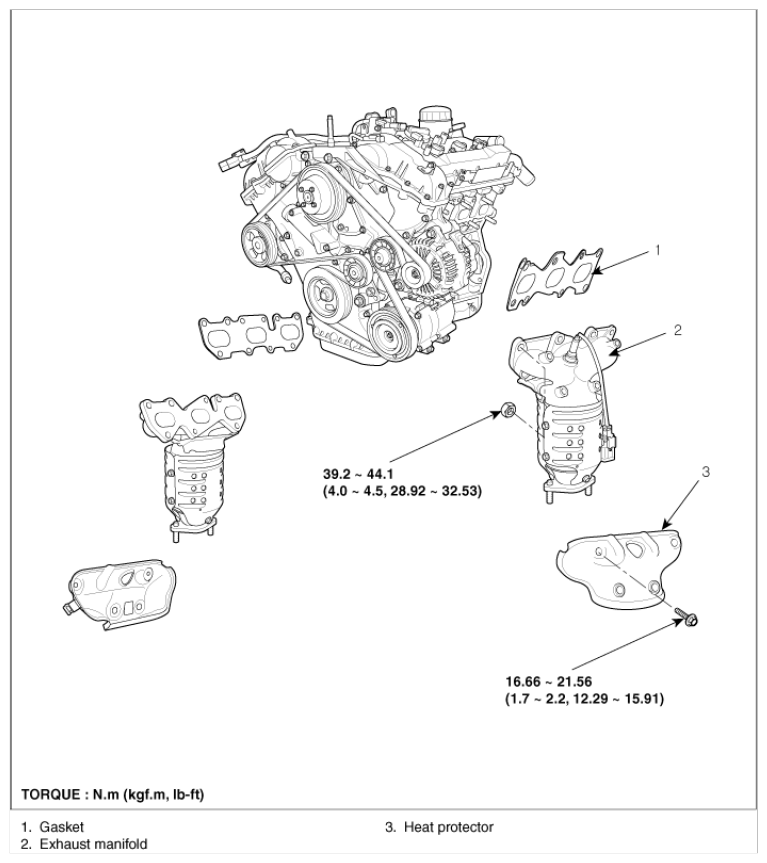

Fig 2: Exhaust Manifold And Catalytic Converter Replacement Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.

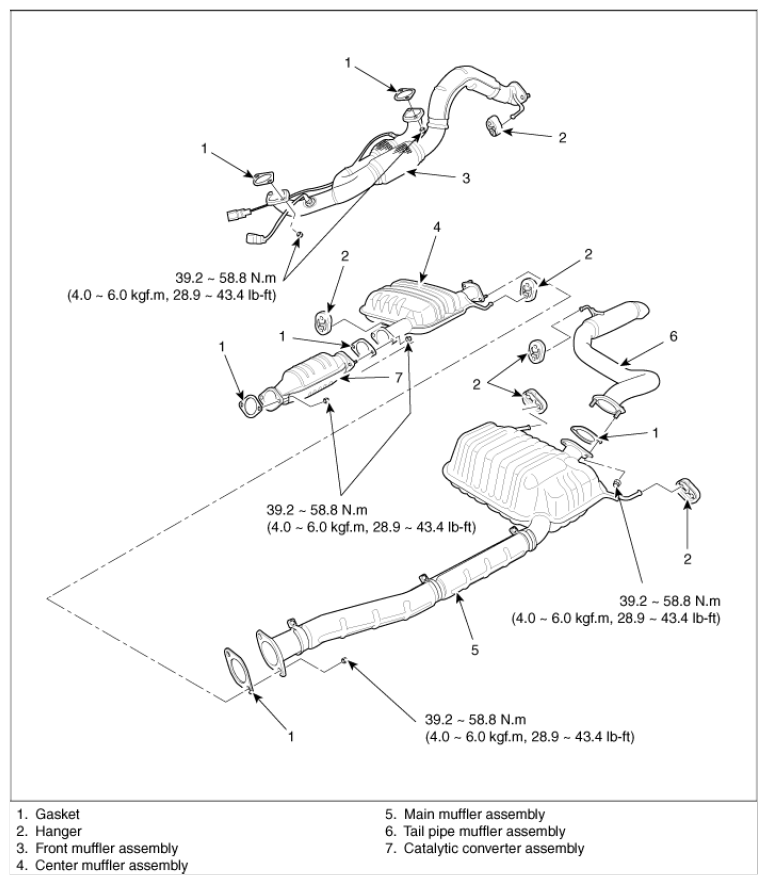

Fig 3: Muffler And Catalytic Converter Replacement Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.
