Engine Mechanical System: Component

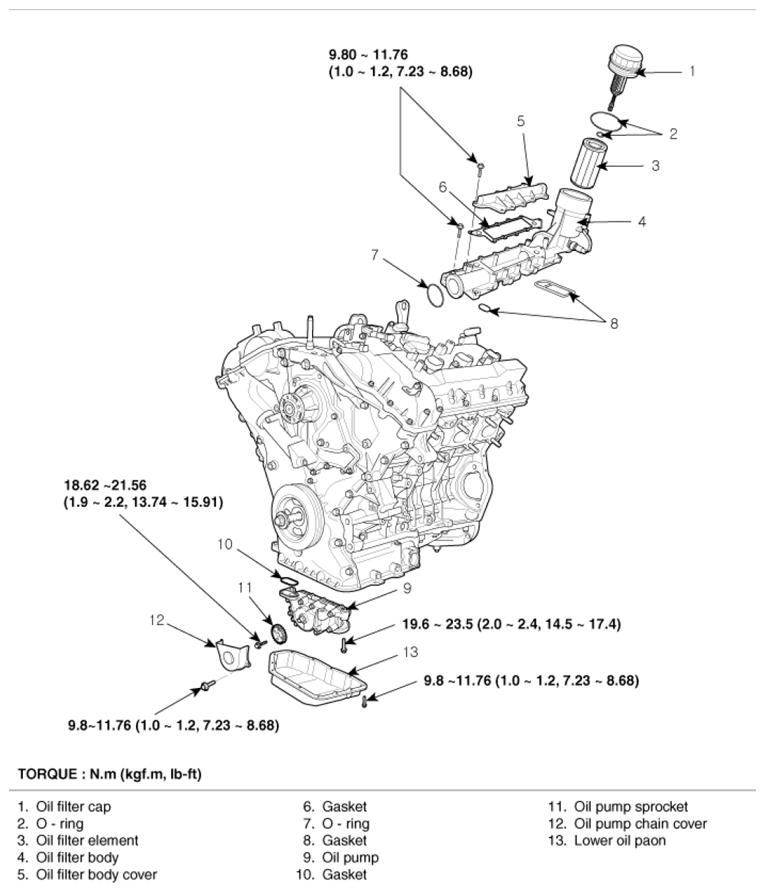

Fig 1: Lubrication System Replacement Components With Torque Specifications
G06837896Courtesy of KIA MOTORS AMERICA, INC.
