Main Bearing Oil Clearance

Main Bearing Oil Clearance






Main bearing cap bolt

Install main bearing cap bolts.
(1)Install and uniformly tighten the bearing cap bolts, in several passes, in the sequence shown.

Tightening torque
49.00 Nm (5.0 kgf.m, 36.16 lb-ft) + 90° (1 - 8)
19.60 Nm (2.0 kgf.m, 14.46 lb-ft)+ 120° (9 - 16)
29.40 - 31.36 Nm (3.0 - 3.2 kgf.m, 21.70 - 23.14 lb-ft) (17 - 22)

NOTE:
- Always use new main bearing cap bolt.
- If any of the bearing cap bolts in broken or deformed, replace it.

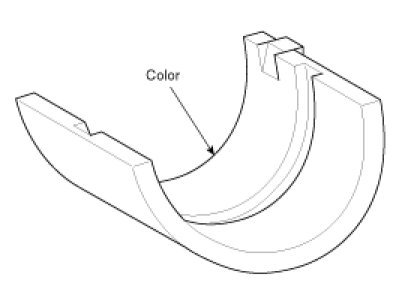

PLACE OF IDENTIFICATION MARK (CRANKSHAFT BEARING)






DISCRIMINATION OF CRANKSHAFT BEARING
