Cylinder Head

Note: "Head Bolts are Reusable"

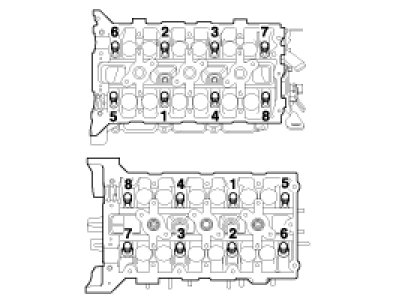

Cylinder Head Torque and Sequence

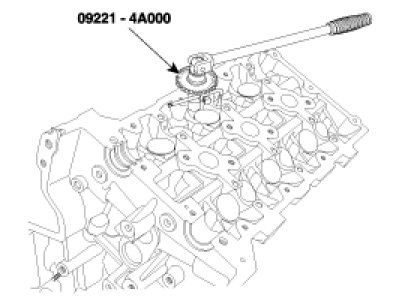

Head bolt : 37.3 - 41.2 Nm (3.8 - 4.2 kgf.m, 27.5 - 30.4 lb-ft) + 118 - 122° + 88 - 92°

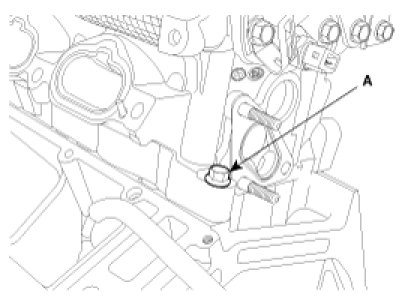

Bolt (A) : 18.62 - 23.52 Nm (1.9 - 2.4 kgf.m, 13.74 - 17.36 lb-ft)

NOTE: Always use new cylinder head bolt.
