Power Window Motor: Service and Repair

REPLACEMENT

FRONT POWER WINDOW MOTOR
1. Remove (-) negative battery terminal.
2. Remove the front door trim panel.

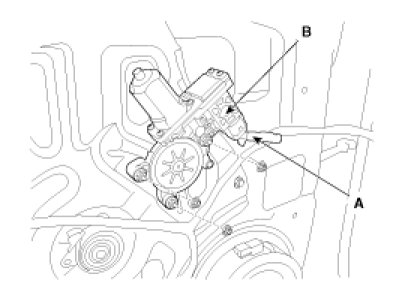

3. Remove the window motor (B) after disconnecting the motor connector (A) and mounting nuts.




4. Installation is the reverse of removal.

QUARTER GLASS MOTOR
1. Remove (-) negative battery terminal.

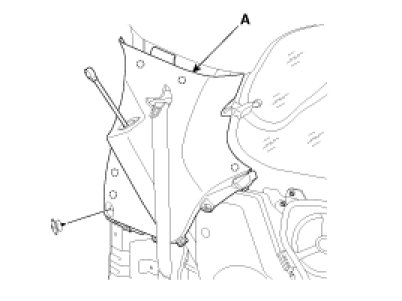

2. Remove the D pillar trim panel (A).




3. Remove the quarter glass motor (B) after disconnecting the motor connector (A) and quarter glass motor mounting bolts and screws.




4. Installation is the reverse of removal.
