Blower Motor: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad Dashboard / Instrument Panel

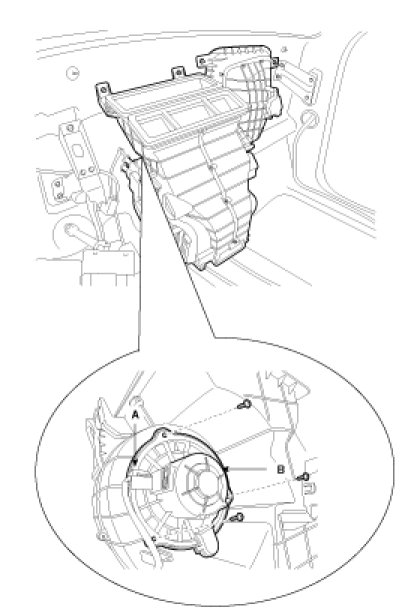

3. Disconnect the connector (A) of the blower motor.
4. Remove the blower motor (B) after loosening the mounting screws.




5. Installation is the reverse order of removal.
