Axle Shaft Assembly

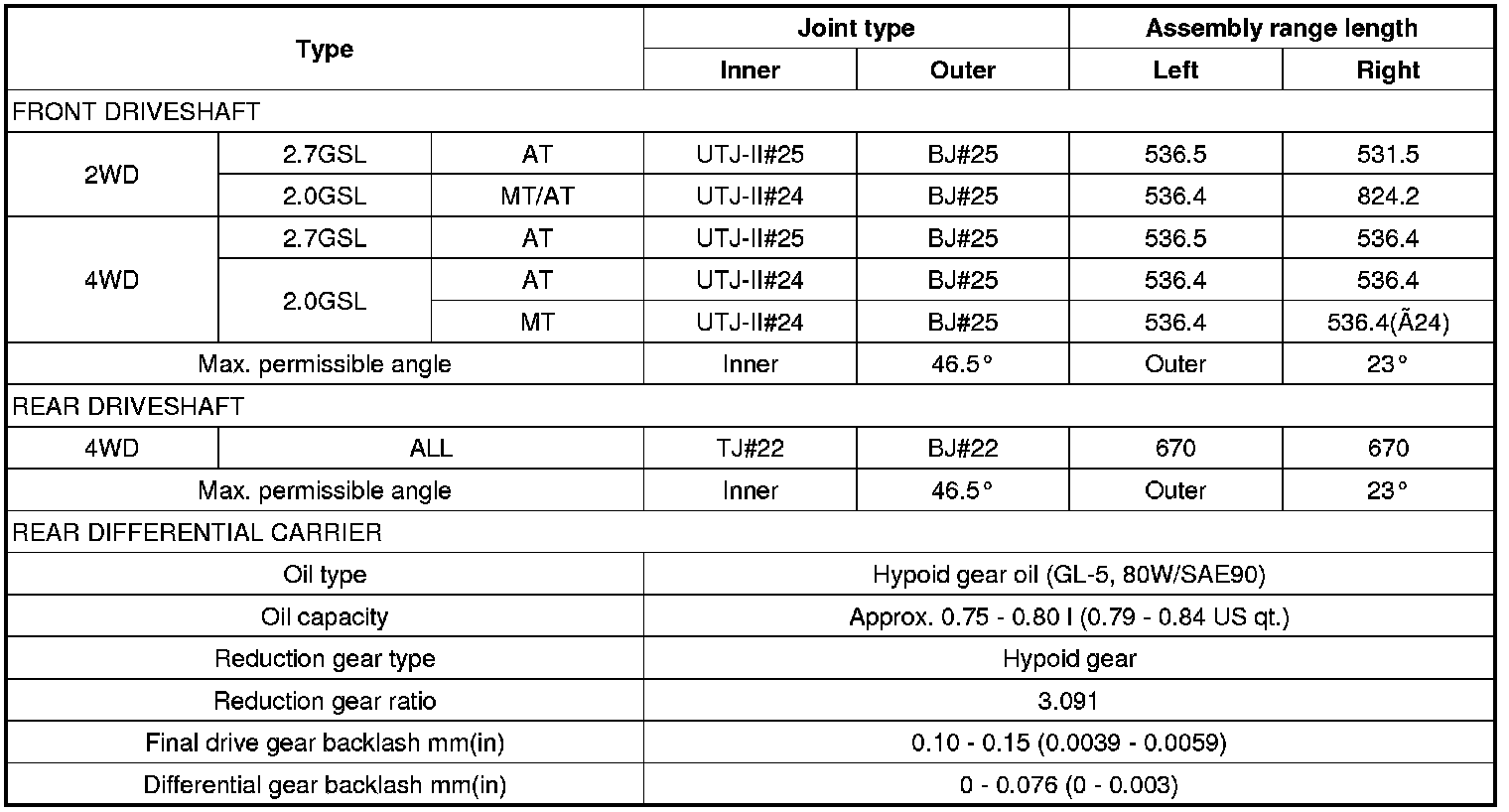

SPECIFICATION





NOTE:
BJ : Birfield Joint
TJ : Tripod Joint
UTJ-II : U-type Tripod Joint

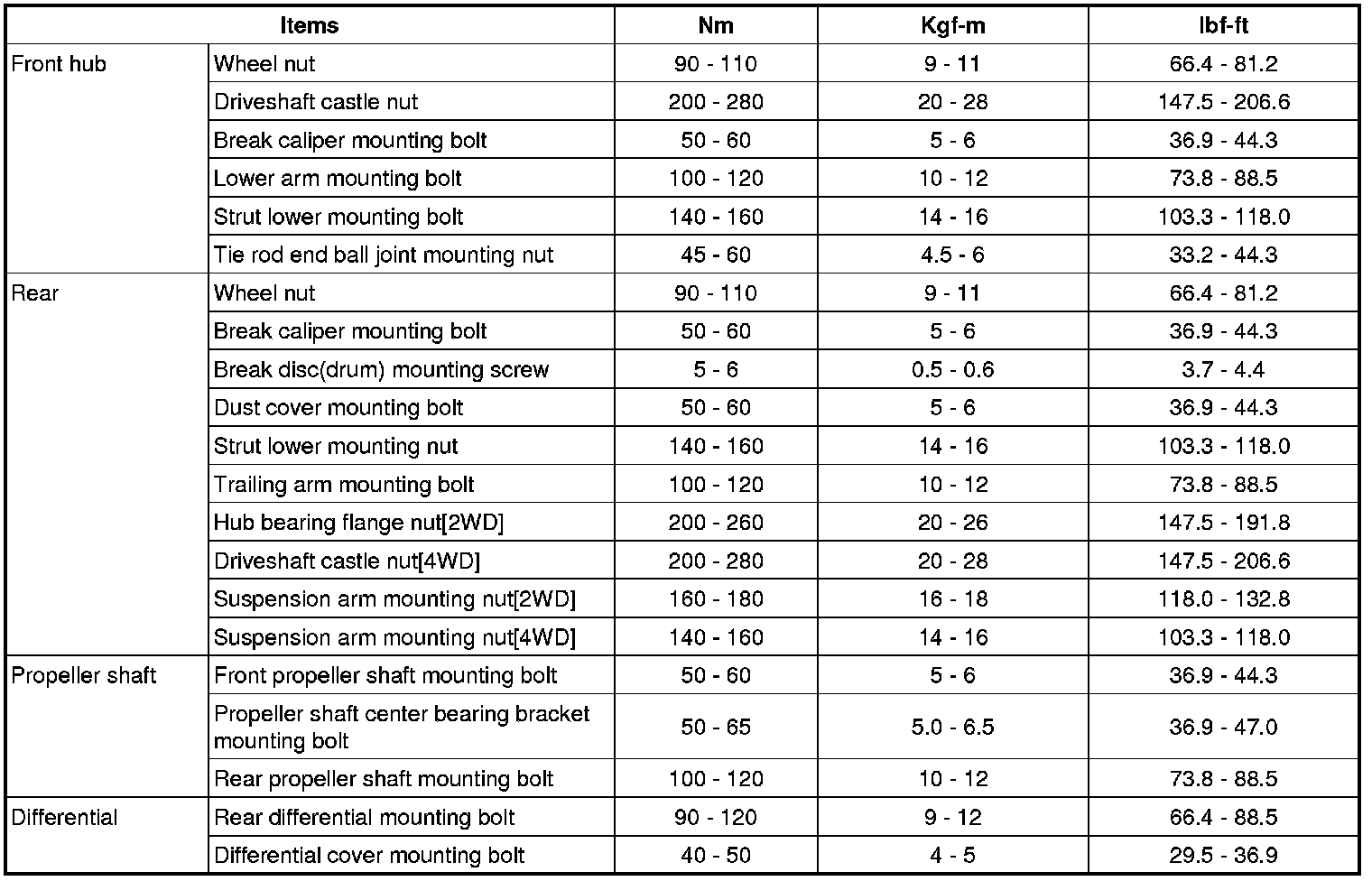

TIGHTENING TORQUE






CAUTION:
Replace self-locking nuts with new ones after removal.

LUBRICANTS

FRONT DRIVESHAFT
[2WD]





[4WD]






REAR DRIVESHAFT (4WD)
