Seat Temperature Switch: Testing and Inspection

Inspection

Front Seat Warmer Switch
1. Disconnect the negative (-) battery terminal.

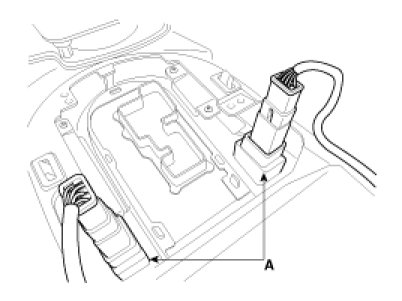

2. Remove the floor console(A).

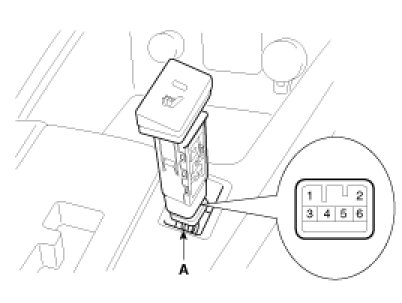

3. Disconnect the seat warmer switch connector(A).

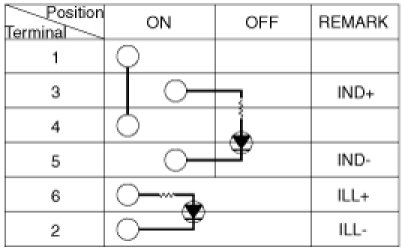

4. Check that continuity exists between the terminals(A).
