Rear Door Window Motor: Service and Repair

Replacement

Power Window Motor Replacement

1. Remove the door trim.

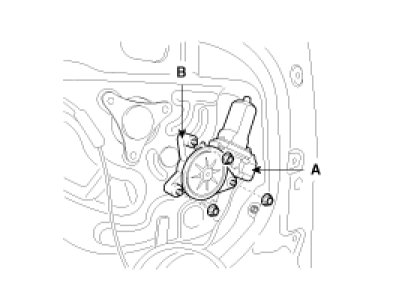

2. After disconnecting the connector (A), unbolt motor, remove the power window motor (B).




3. Installation is the reverse of removal.

NOTE:
- The area of rotational parts and springs should be applied with sufficient grease.
- Roll the glass up down to see if it moves freely without binding.
