Home >> Kia >> 2011 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M03 Ignition Switch
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

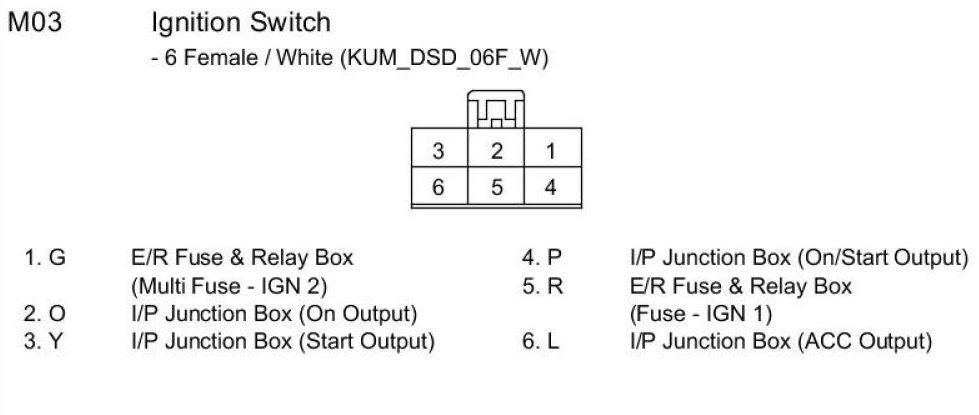

M03 Ignition Switch

M03 Ignition Switch:
