Oil Temperature Sensor/Switch, Engine
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Oil Temperature Sensor/Switch, Engine

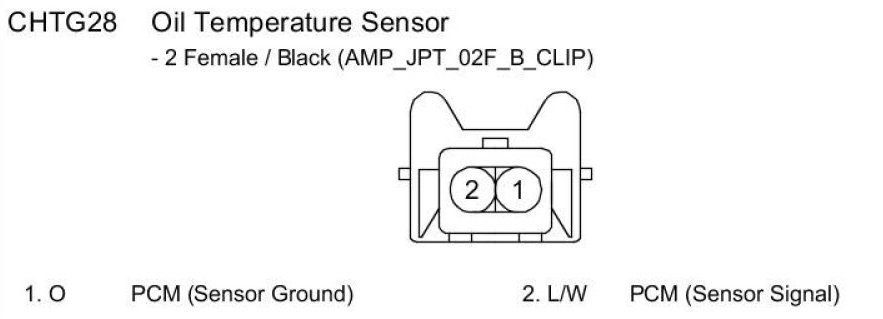

CHTG28 Oil Temperature Sensor:
