System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

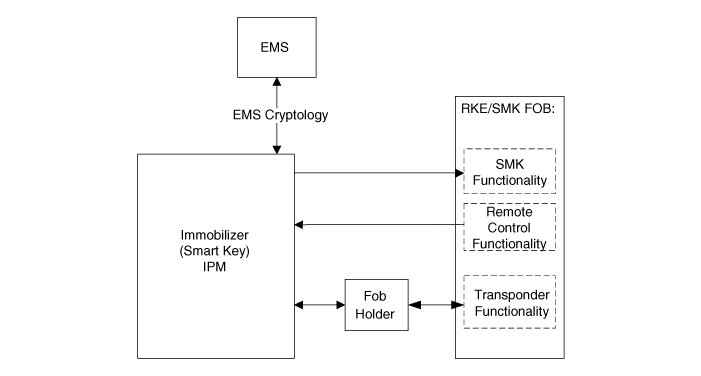

System Diagram

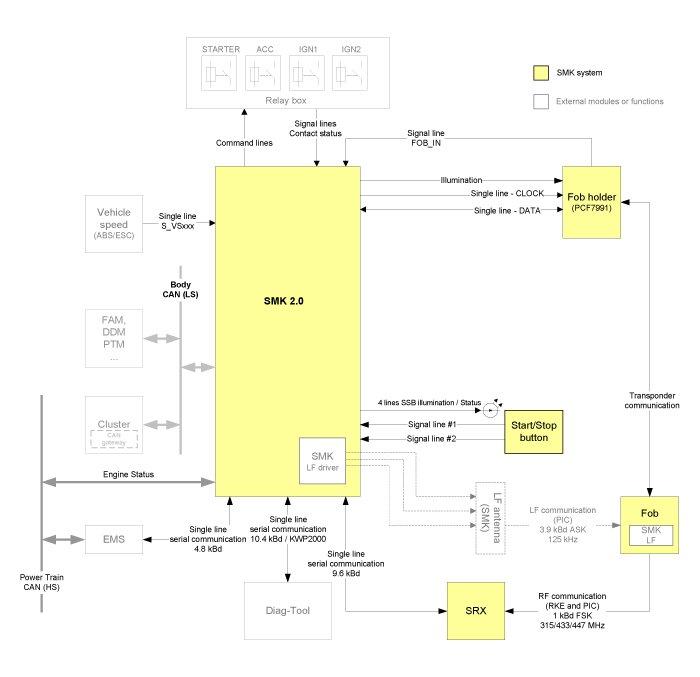

Circuit Diagram (1)
Circuit Diagram (2)
