Components And Components Location: Components

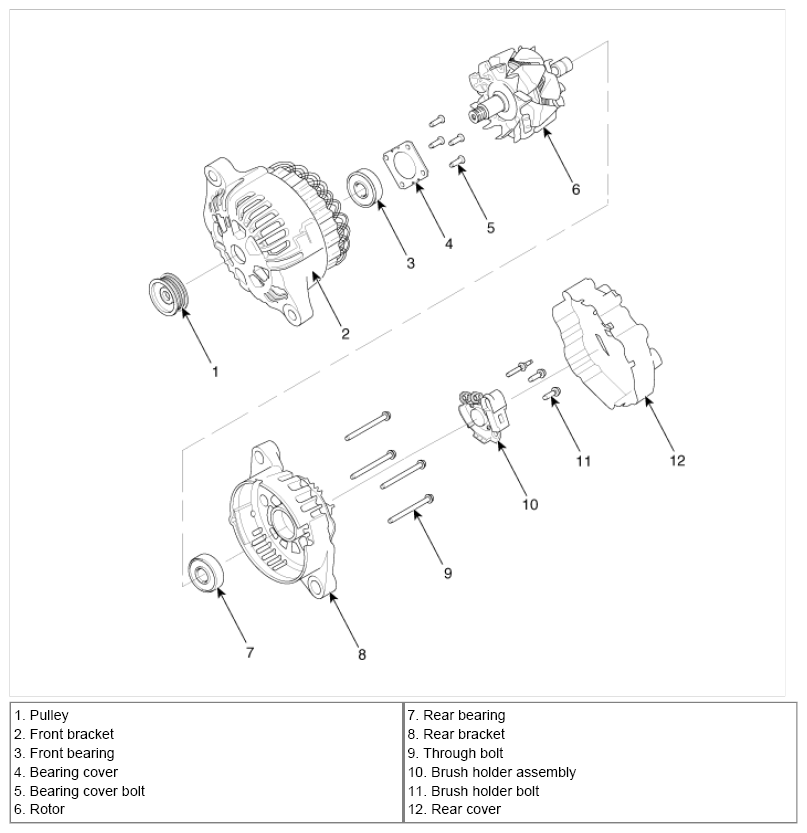

Fig 1: Exploded View Of Alternator

G07386034

Courtesy of KIA MOTORS AMERICA, INC.
