Components and Components Location: Components

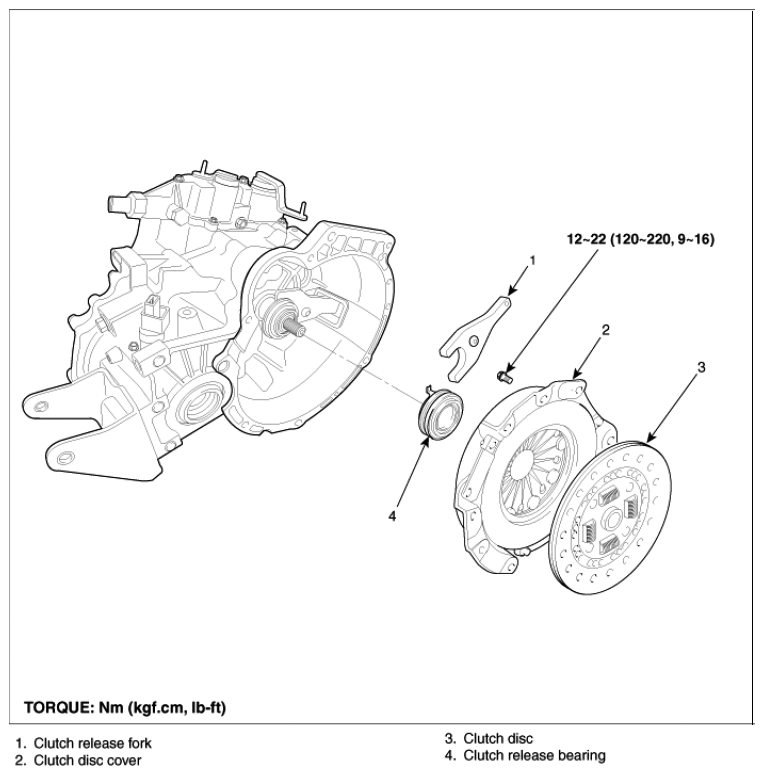

Fig 1: Clutch Cover And Disc Replacement Components With Torque Specifications
G06828795Courtesy of KIA MOTORS AMERICA, INC.
