Repair Procedures

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.

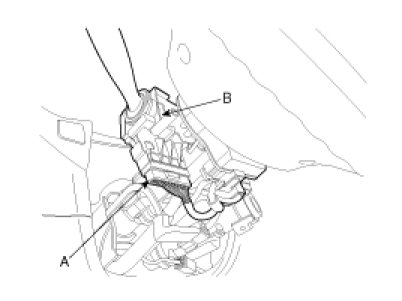

3. Remove the light switch by pushing the lock pin (B) after disconnecting the connector (A).




4. Remove the wiper switch by pushing the lock pin (B) after disconnecting the connector (A).




5. Installation is the reverse of removal.

INSPECTION

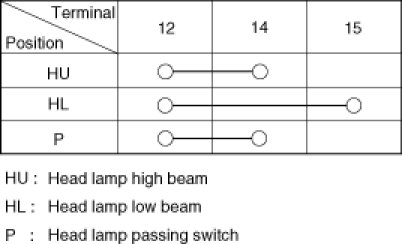

LIGHTING SWITCH INSPECTION

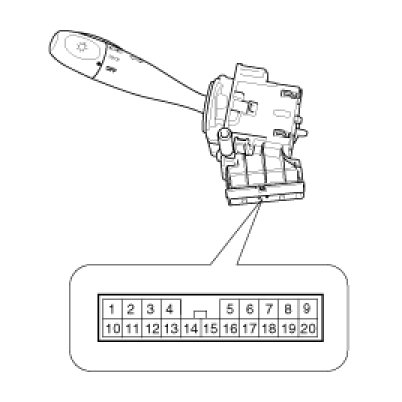

With the multi function switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.

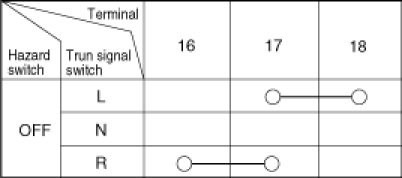

TURN SIGNAL SWITCH





WIPER AND WASHER SWITCH INSPECTION
With the multi function switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.













REAR WIPER & WASHER SWITCH (5Doors)
