Wiper Switch: Service and Repair

REPLACEMENT

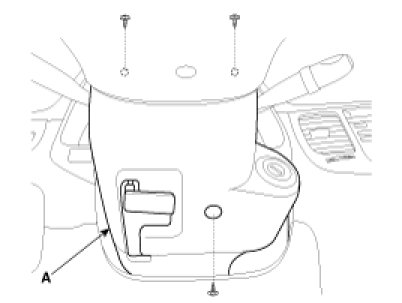

1. Remove the steering column upper and lower shrouds (A) after removing 3 screws.

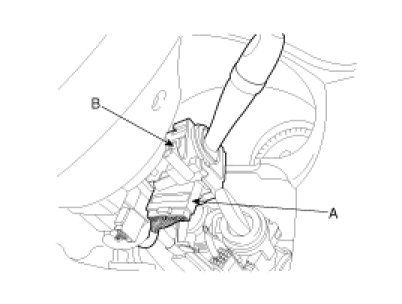

2. Remove the wiper switch (A) by pushing the lock pin (B) after disconnecting the connector.




3. Installation is the reverse of removal.

INSPECTION

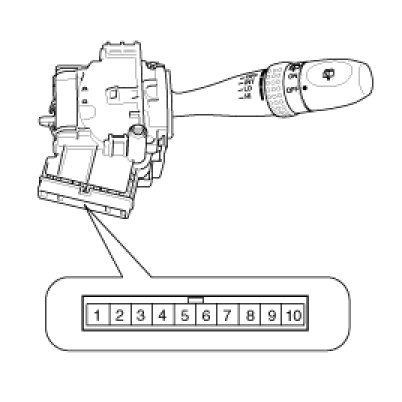

Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and wiper switch.

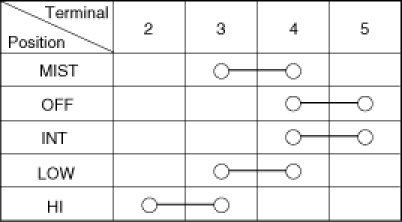

WIPER SWITCH





WASHER SWITCH
