Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.

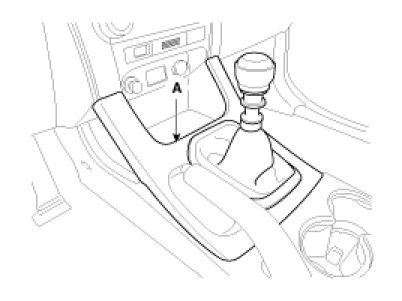

2. Using a screwdriver, remove the floor console upper cover(A).





NOTE:
When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

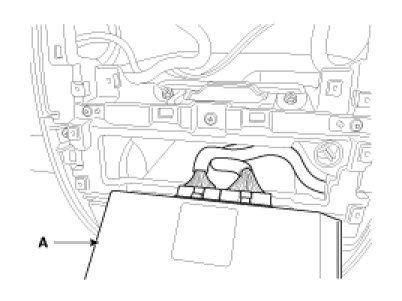

3. Remove the crash pad lower panel (A) then disconnect the connector (B).

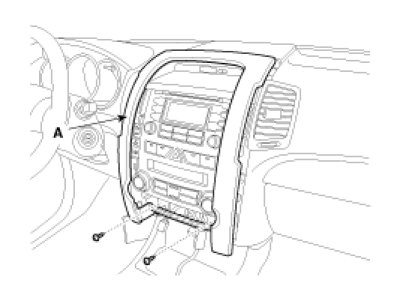

4. Remove the center fascia panel (A).

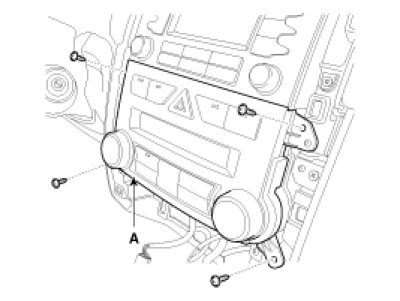

5. After loosening the mounting screws, then remove the heater control unit (A).








6. Installation is the reverse order of removal.
