Fuse: Locations

Fuse & Relay Information

Instrument Panel Module (IPM) View:




Instrument Panel Module (IPM) Circuit Details:




E/R Fuse And Relay Box View:




E/R Fuse And Relay Box Circuit Details:

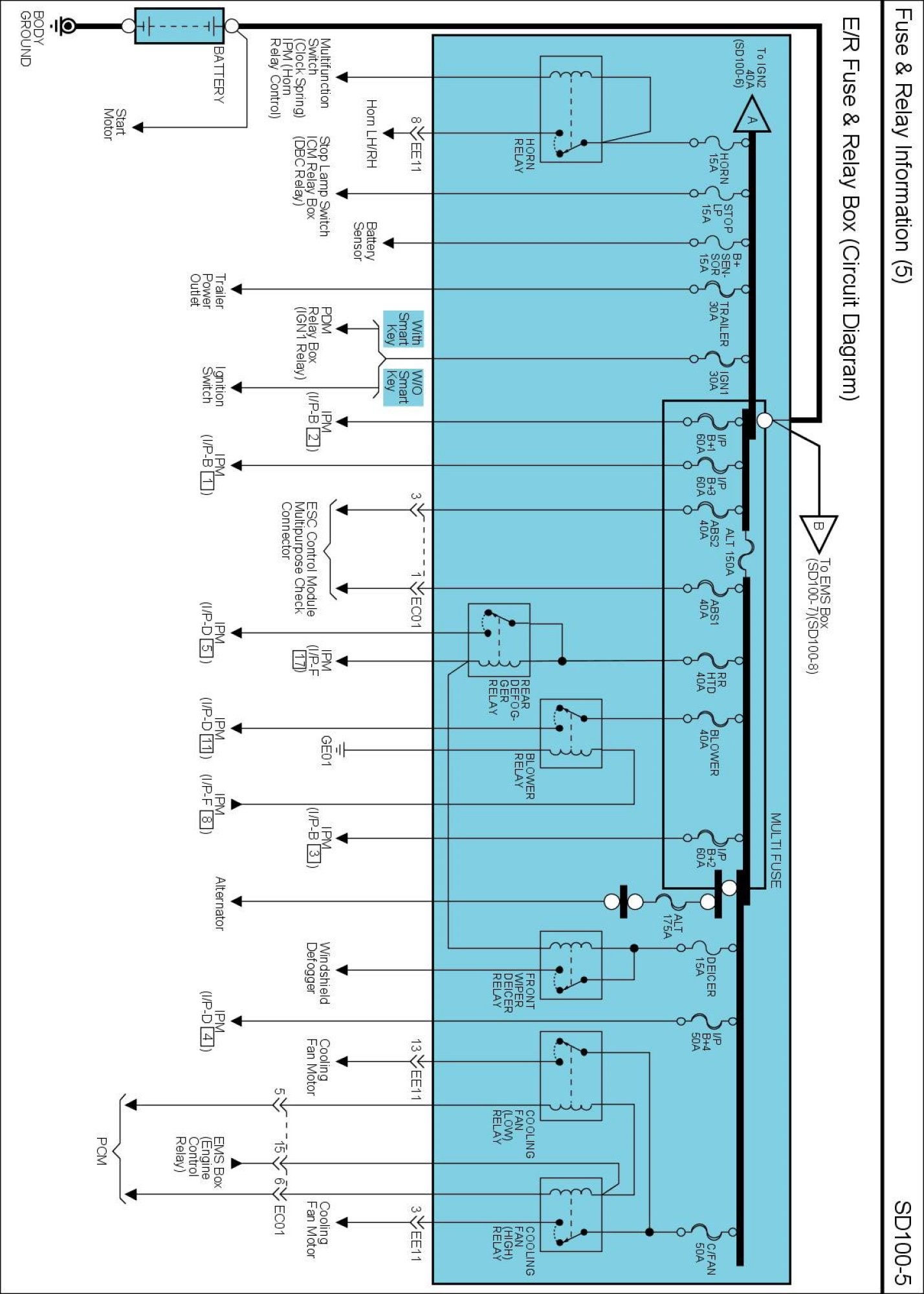

E/R Fuse And Relay Box Circuit Diagram:

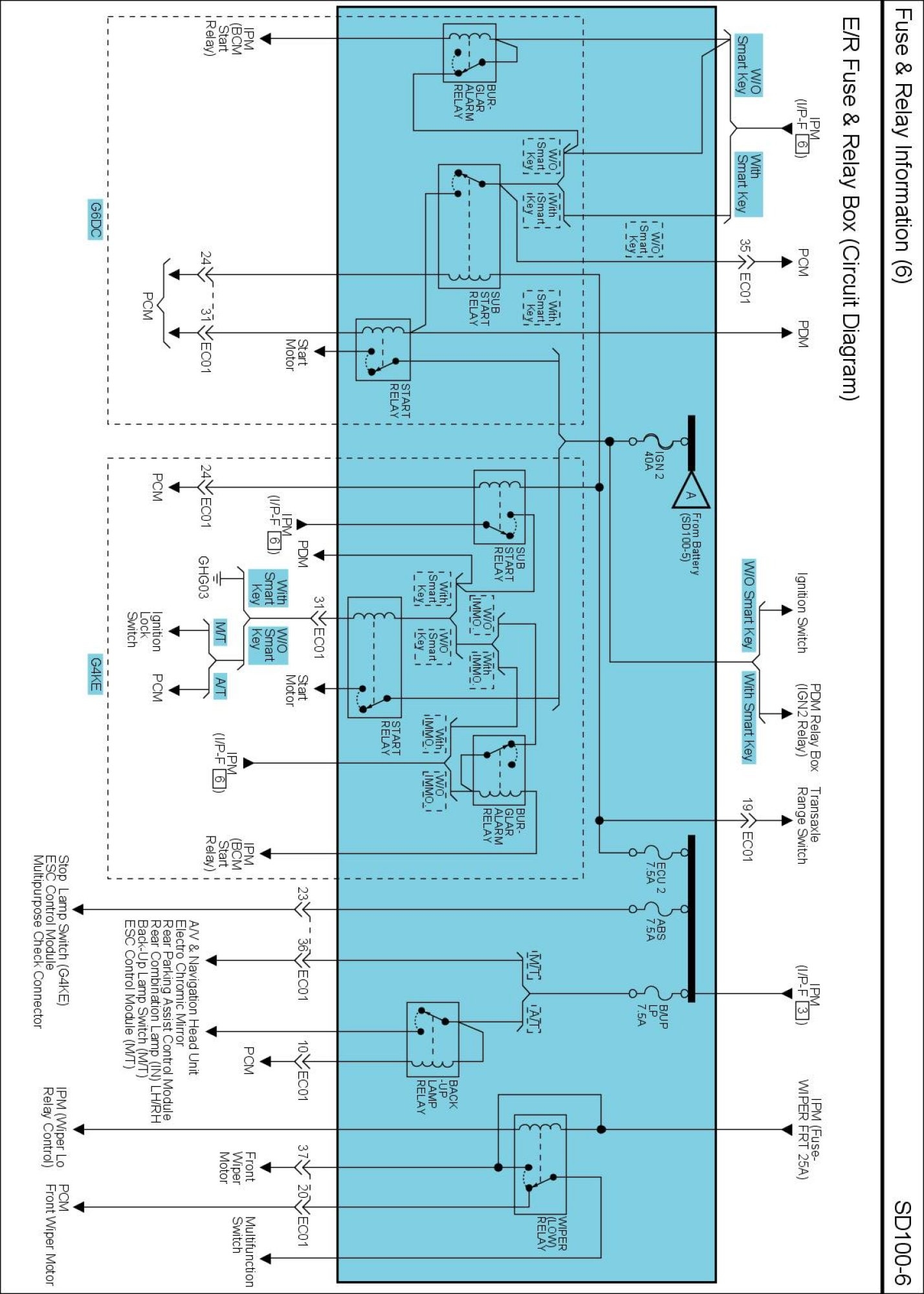

E/R Fuse And Relay Box Circuit Diagram:




EMS Box Circuit Diagram:

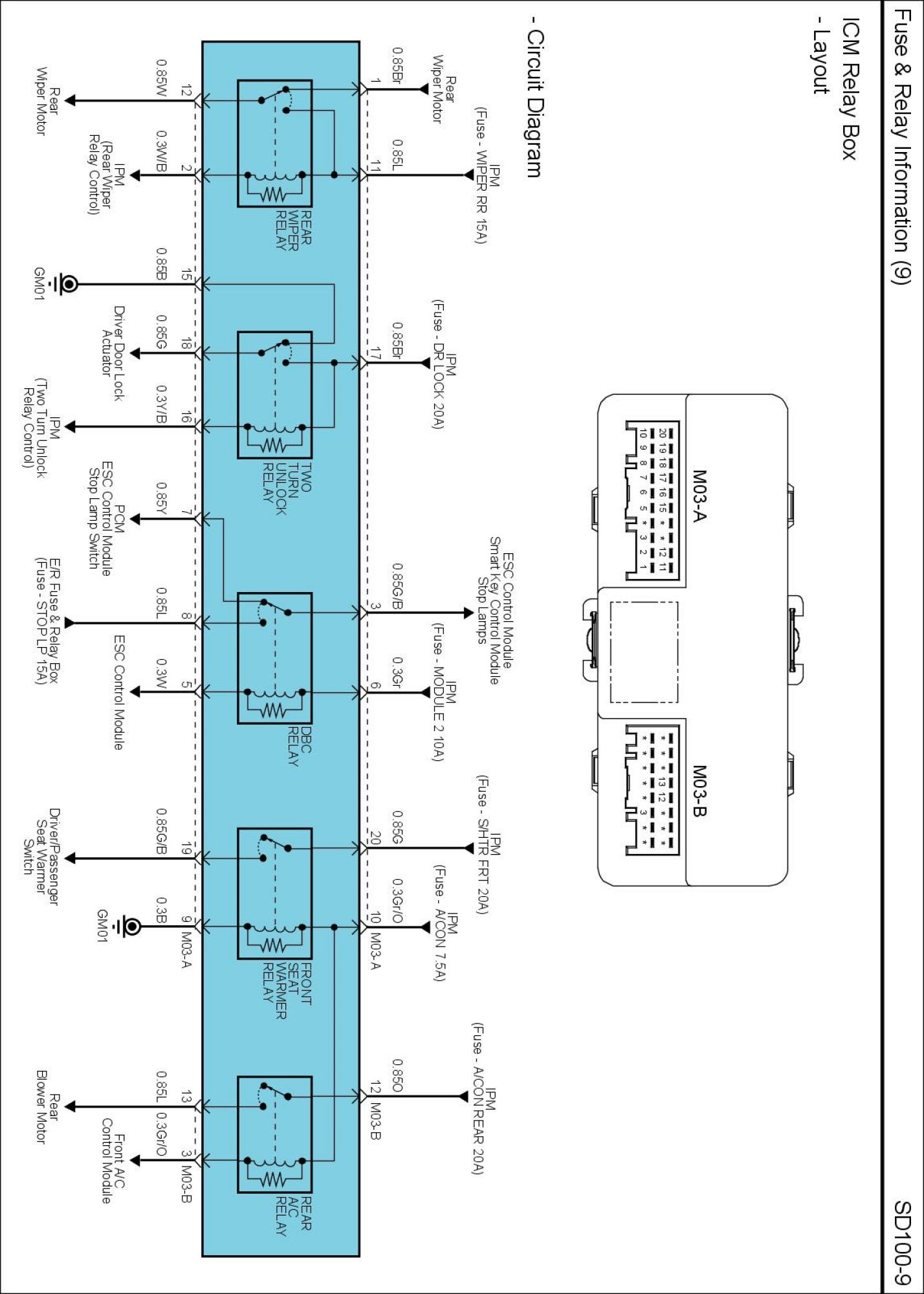

ICM Relay Box:
