Campaign - Install Front Coil Spring Protection Tube

NUMBER SC 091 [Rev 3, 10/25/2011]

GROUP Voluntary Service Campaign

DATE October 2011

MODEL 2011MY Sorento (XM)

VOLUNTARY SERVICE CAMPAIGN

SUBJECT:
ADDITION OF FRONT SPRING PROTECTION TUBE (SC091)








Information/Notice

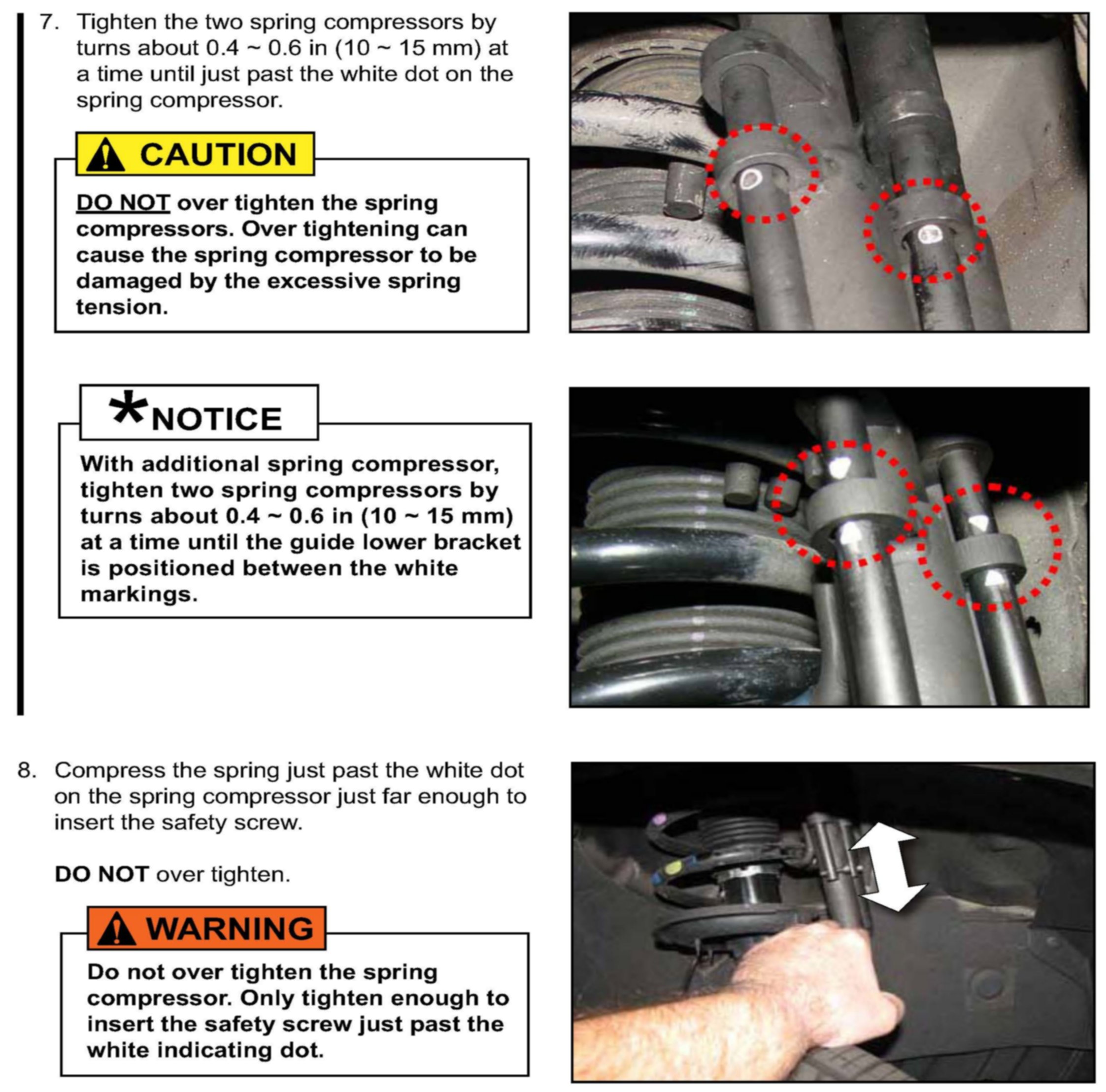

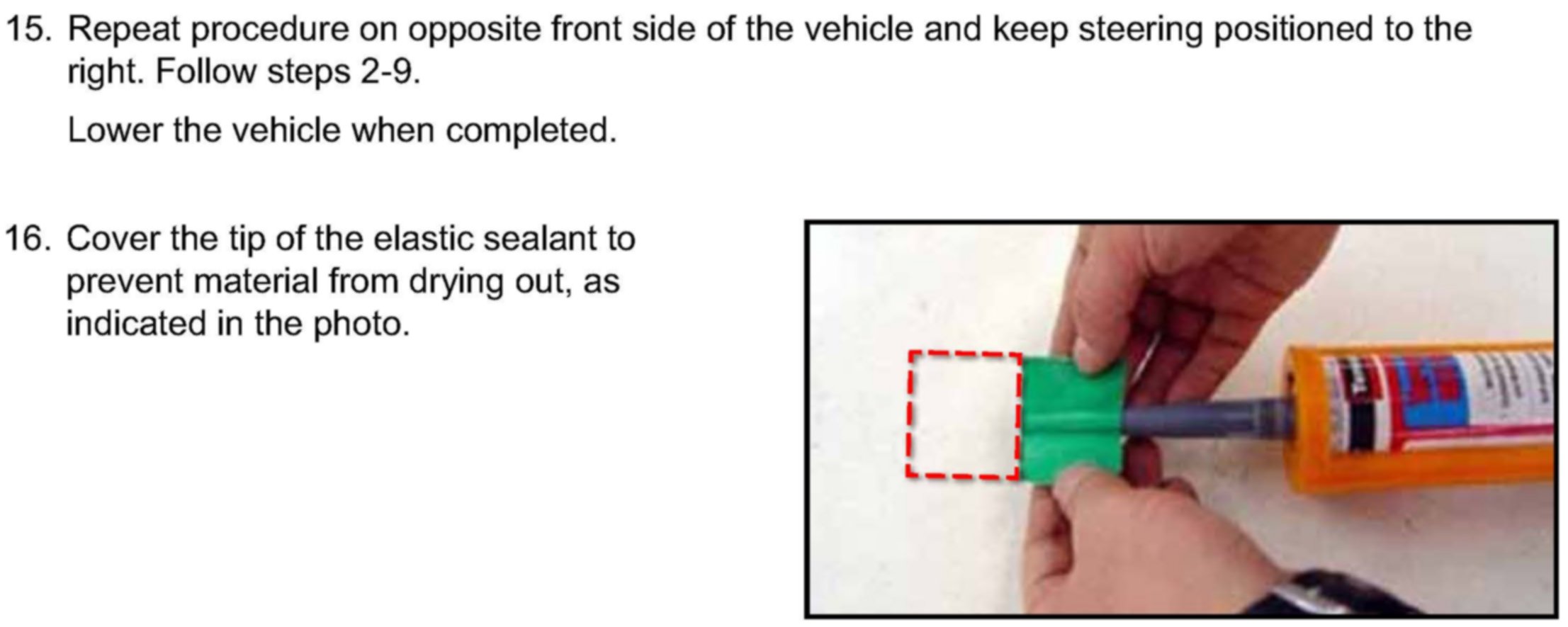

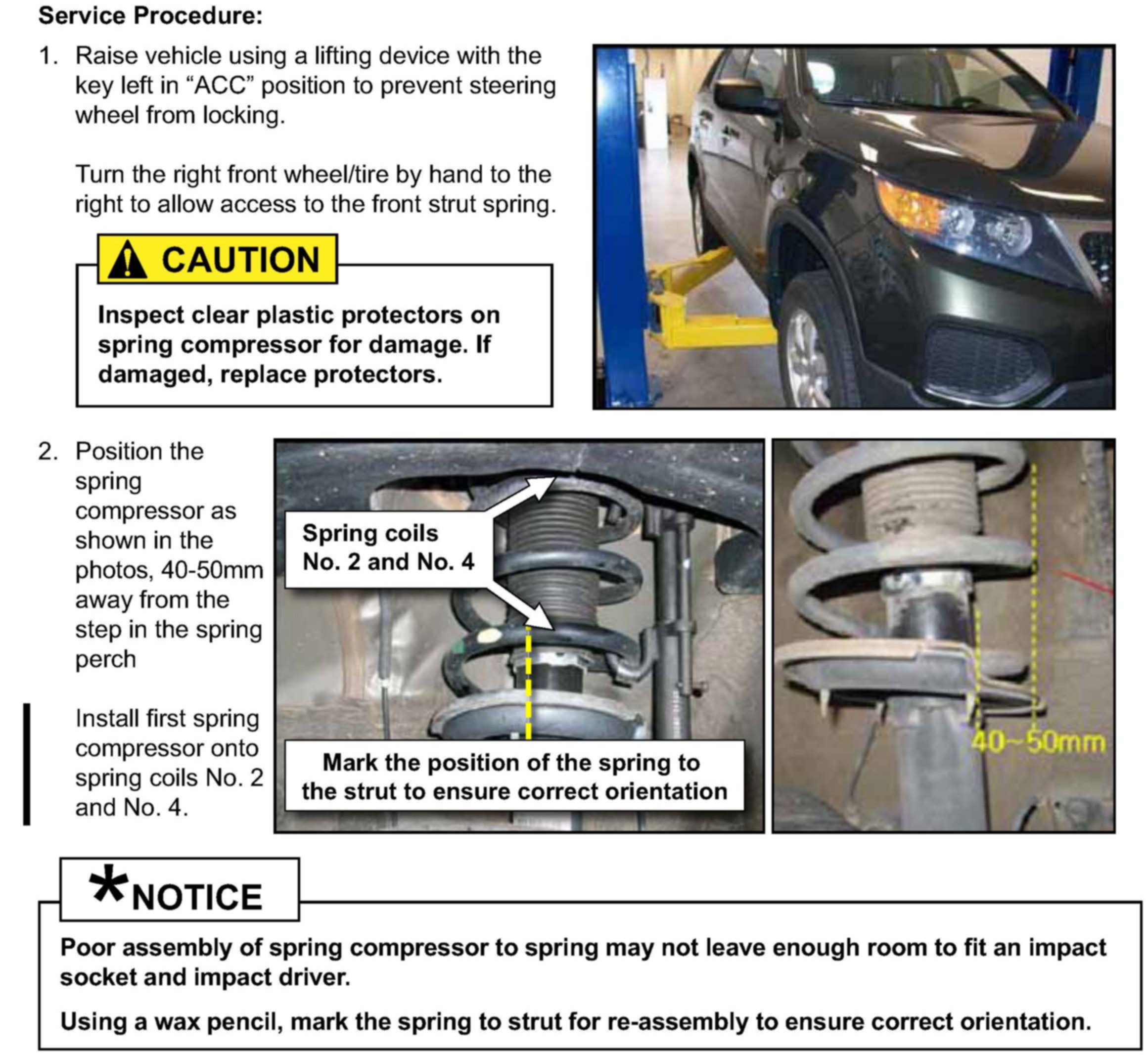

Service Procedure

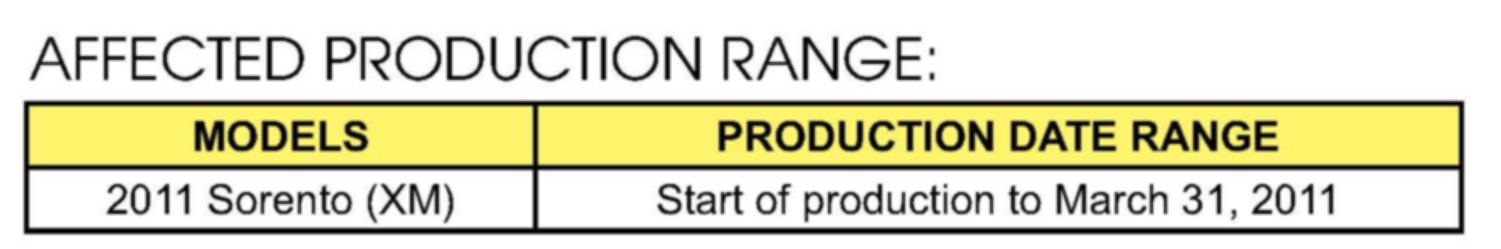

Affected Production Range

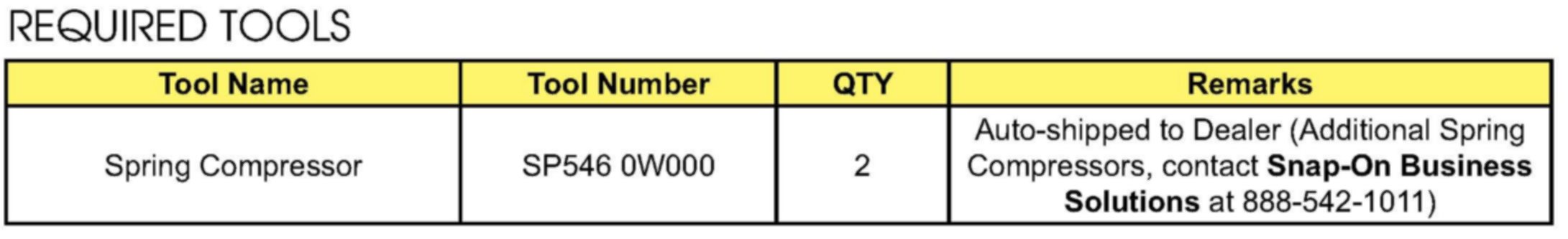

Required Tools

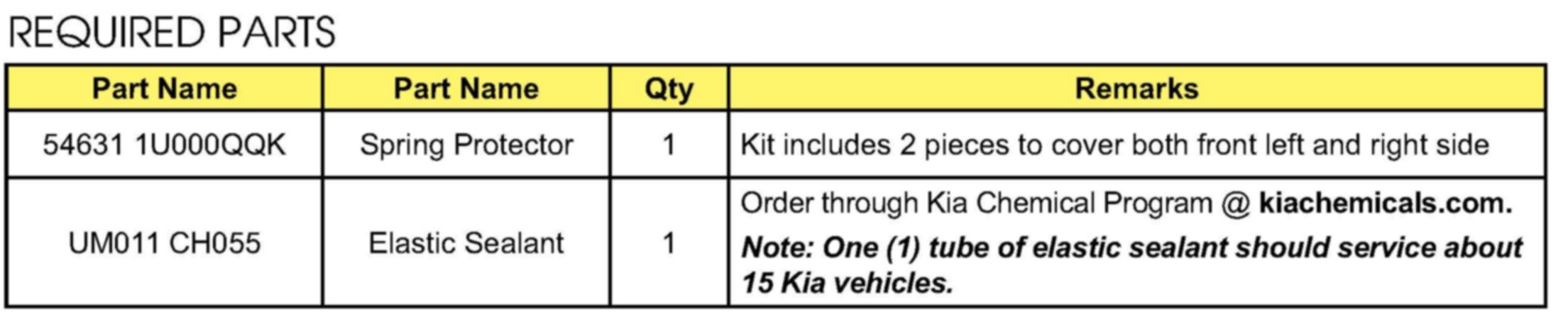

Required Parts





Warranty Claim Information

*NOTICE
To assure complete customer satisfaction, always remember to refer to WebDCS warranty Coverage (validation) Inquiry Screen (Service > Warranty Coverage > Warranty Coverage Inquiry) for a list of any additional campaigns that may need to be performed on the vehicle before returning it to the customer.
