Interior C

WARNING: This page is about a different car, the 2011 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

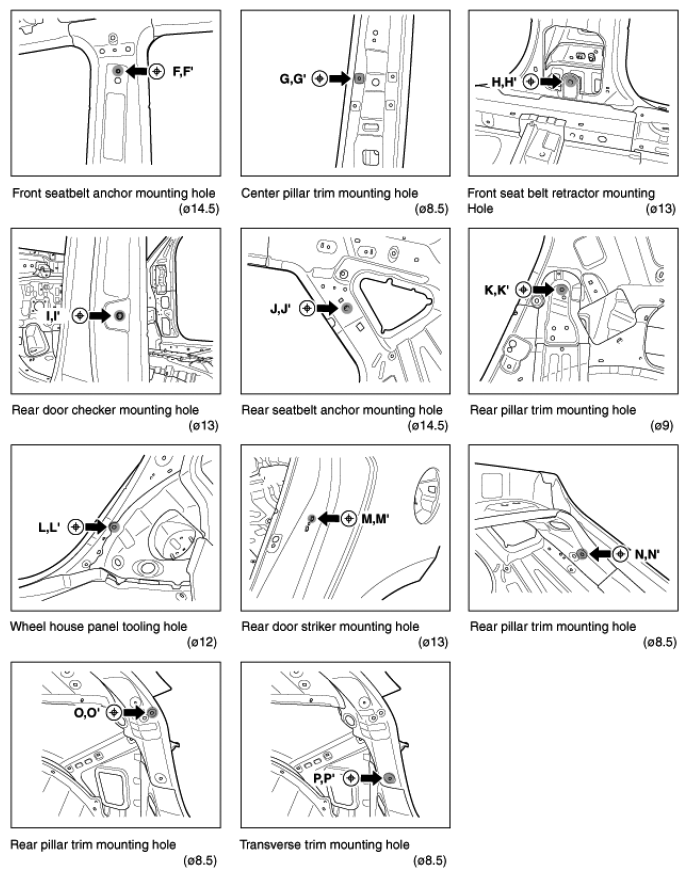

Fig 1: Identifying Measurement Points - Interior C (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

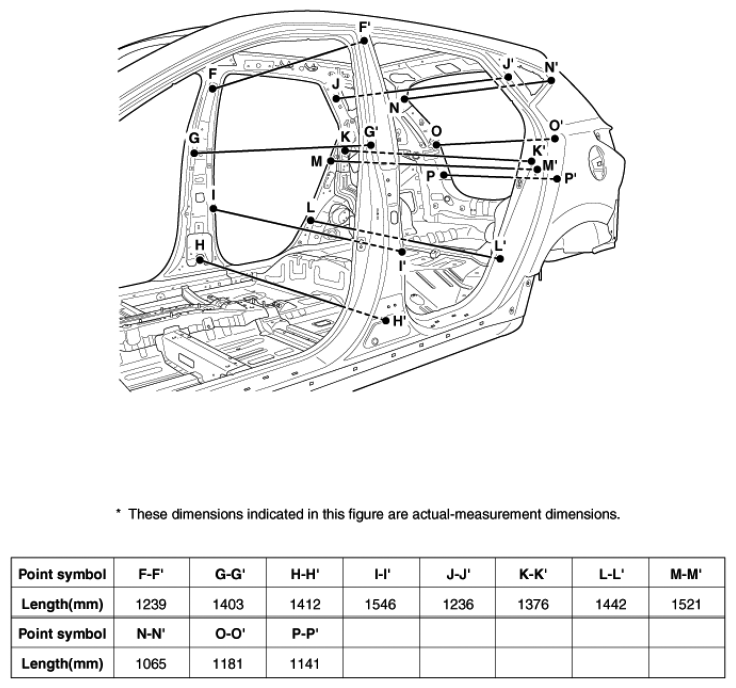

Fig 2: Identifying Measurement Points - Interior C (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
