Components and Component Locations: Components

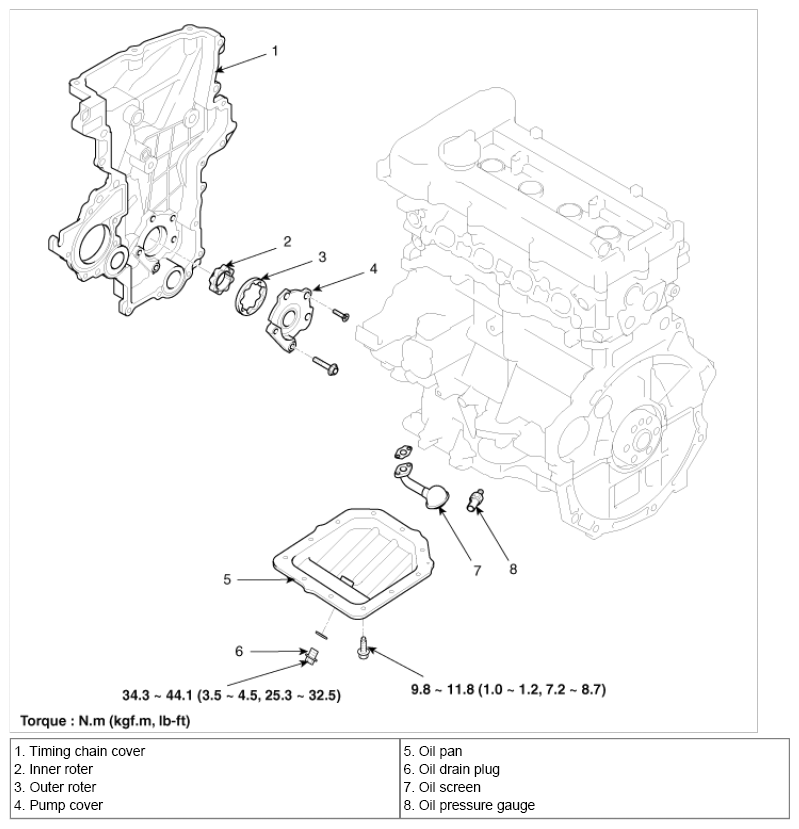

Fig 1: Lubrication System Replacement Components With Torque Specifications
G06526000Courtesy of KIA MOTORS AMERICA, INC.
