Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal first, then the positive terminal.

Fig 1: Identifying Battery Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the alternator connector (A) and "B" terminal cable from the alternator. Loosen the clip (B).

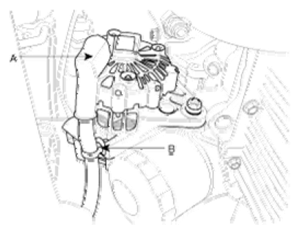

Fig 2: Identifying Alternator Connector & Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the adjusting bolt (A), lock bolt (B), the alternator belt (C) and the alternator mounting bracket (D).
Pull out the through bolt, then remove the alternator (E).

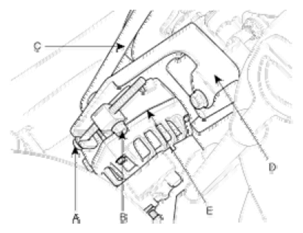

Fig 3: Identifying Alternator, Adjusting Bolt, Lock Bolt, Belt, & Mounting Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
Adjust the alternator belt tension after installation.
