Components (2)

WARNING: This page is about a different variant/trim than selected.

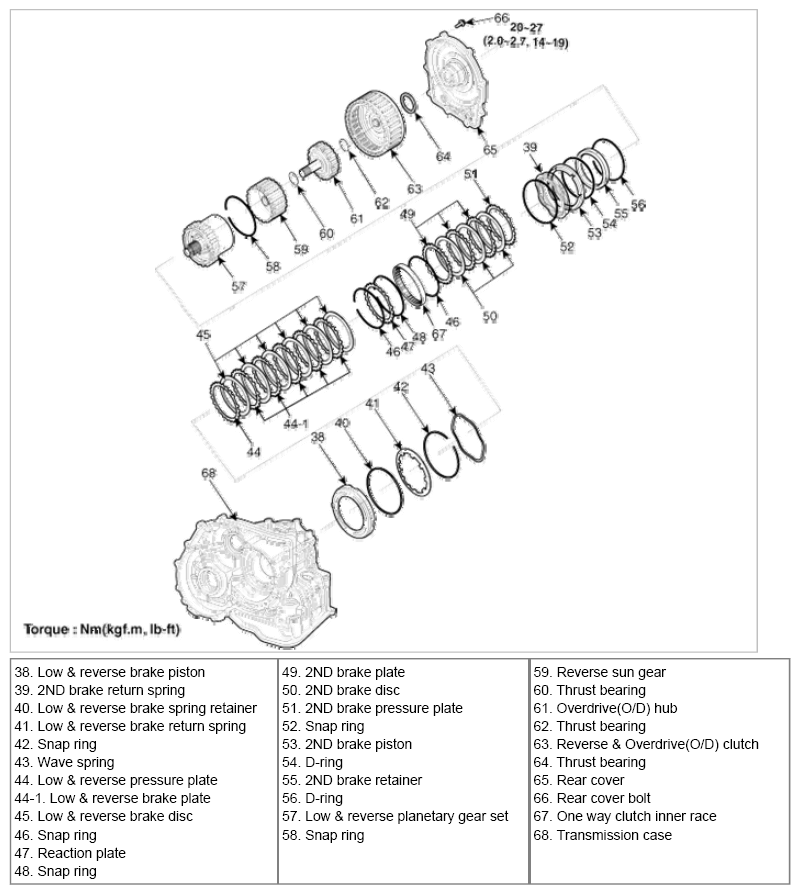

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (2 Of 2)
G06523554Courtesy of KIA MOTORS AMERICA, INC.
