Power Door Lock Switch: Testing and Inspection

Inspection

Driver Door Lock Switch
1. Disconnect the negative (-) battery terminal.

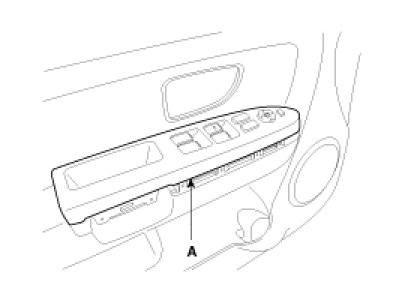

2. Remove the front door trim and power window switch.

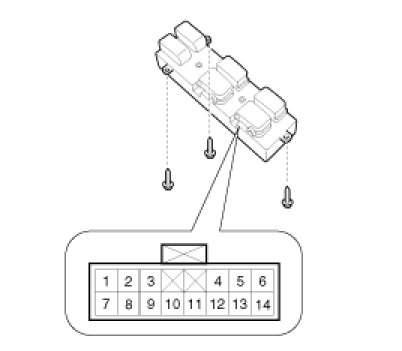

3. Remove the screws from the switch module (A).




4. Remove the power door switch module (A).




5. Check for continuity between the terminals in each switch position according to the table.
