Antitheft and Alarm Systems: Testing and Inspection

Diagnosis Of Immobilizer Faults

- Communication between the ECM and the SMARTRA.
- Function of the SMARTRA and the transponder.
- Data (stored in the ECM related to the immobilizer function.

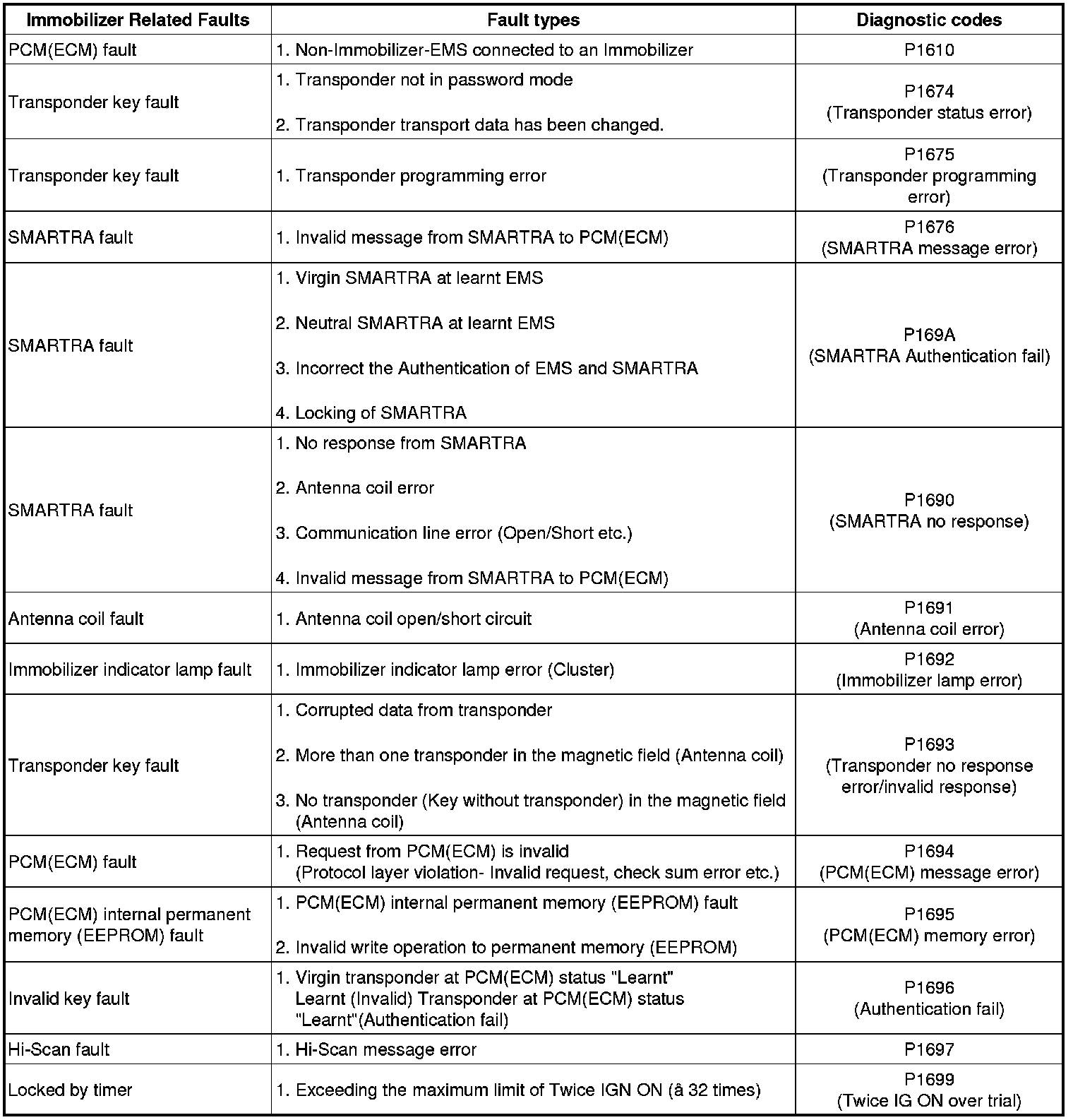

The following table shows the assignment of immobilizer related faults to each type:
