Entertainment Systems: Locations

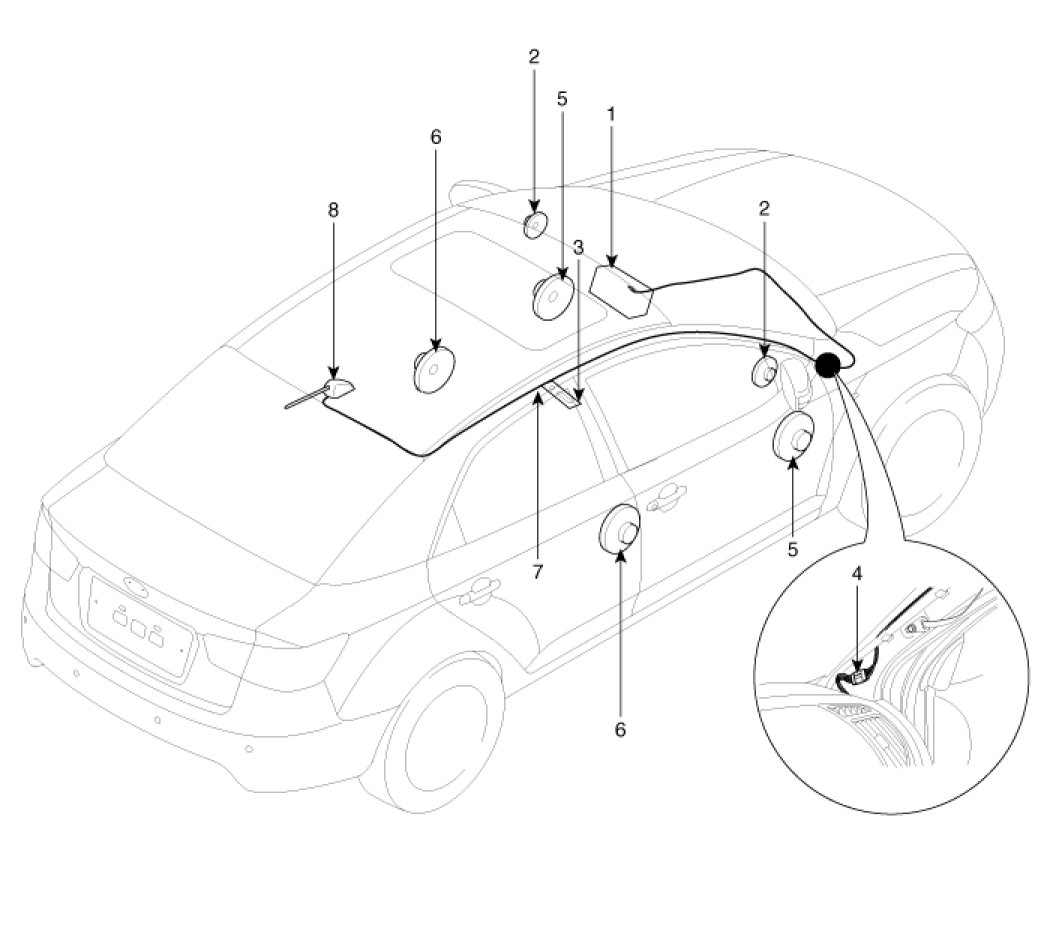

Component Location

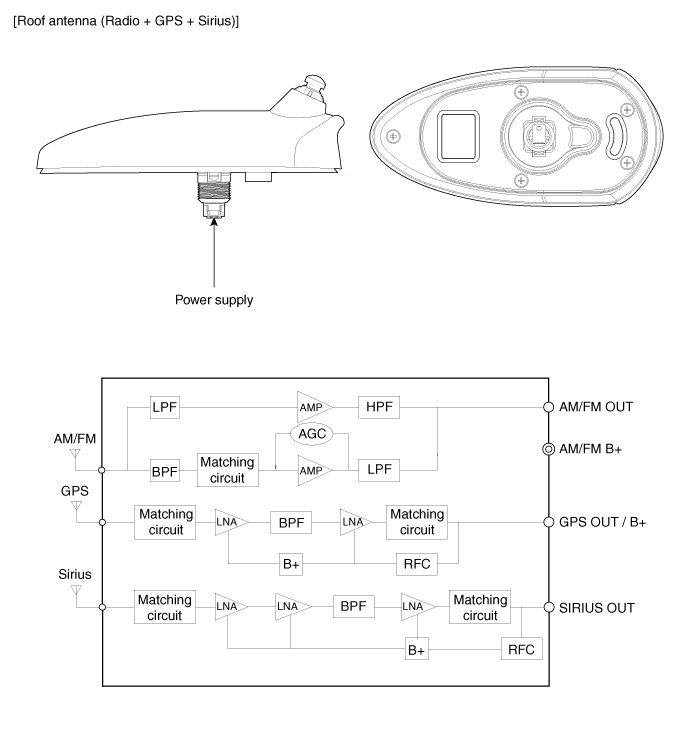

** SDARS : Satellite Digital Audio Radio Service

Components

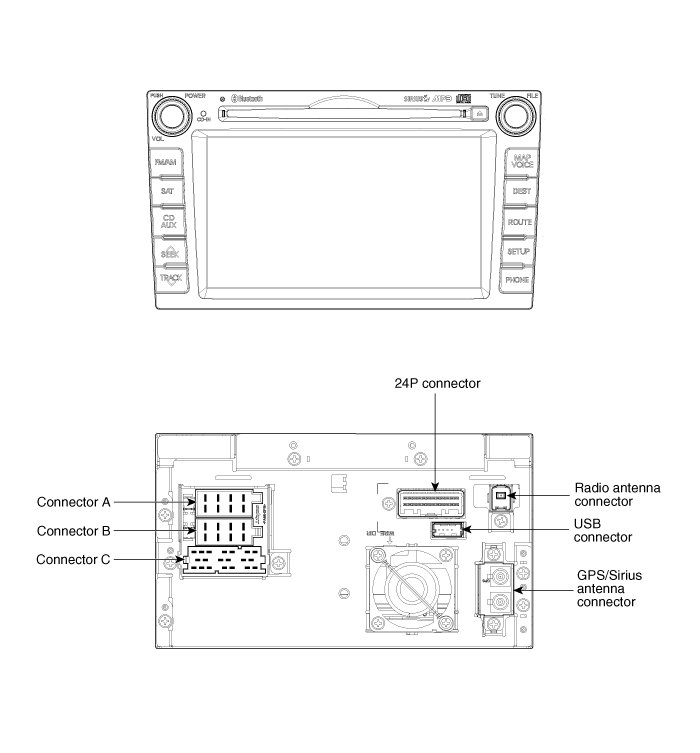

AVN (A/V & Navigation) Head Unit
