Repair Procedures

Removal

1. Remove the lower crash pad. .

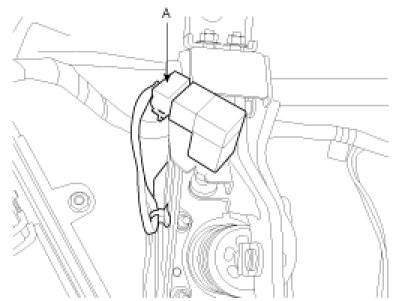

2. Disconnect the stop lamp switch connector (A).

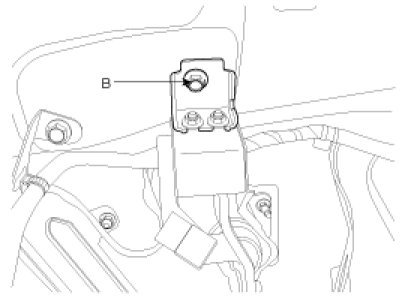

3. Remove the mounting bracket bolt (B).

Tightening torque :
16.7 - 25.5N.m (1.7 - 2.6kgf.m, 12.3 - 18.8lb-ft)

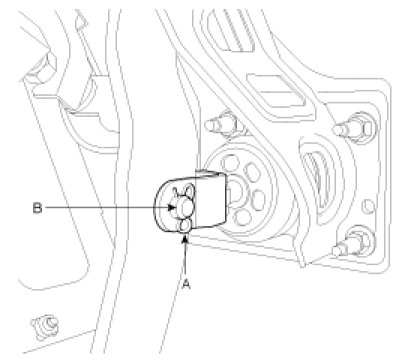

4. Remove the snap pin (A) and clevis pin (B).

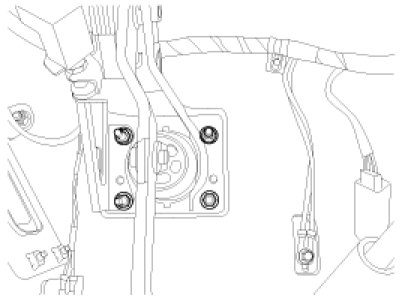

5. Remove the brake pedal member assembly mounting nuts and then remove the brake pedal assembly.

Tightening torque :
12.7 - 15.7N.m (1.3 - 1.6kgf.m, 9.4 - 11.6lb-ft)





Inspection

1. Check the bushing for wear.
2. Check the brake pedal for bending or twisting.
3. Check the brake pedal return spring for damage.
4. Check the stop lamp switch.
(1) Connect a circuit tester to the connector of stop lamp switch, and check whether or not there is continuity when the plunger of the stop lamp switch is pushed in and when it is released.
(2) The stop lamp switch is in good condition if there is no continuity when plunger(A) is pushed.






Installation

1. Installation is the reverse of removal.

CAUTION:
- Before installing the pin, apply the grease to the clevis pin.
- Use a new snap pin whenever installing.

2. Check the brake pedal operation.
