ABS (Anti-Lock Brake System)

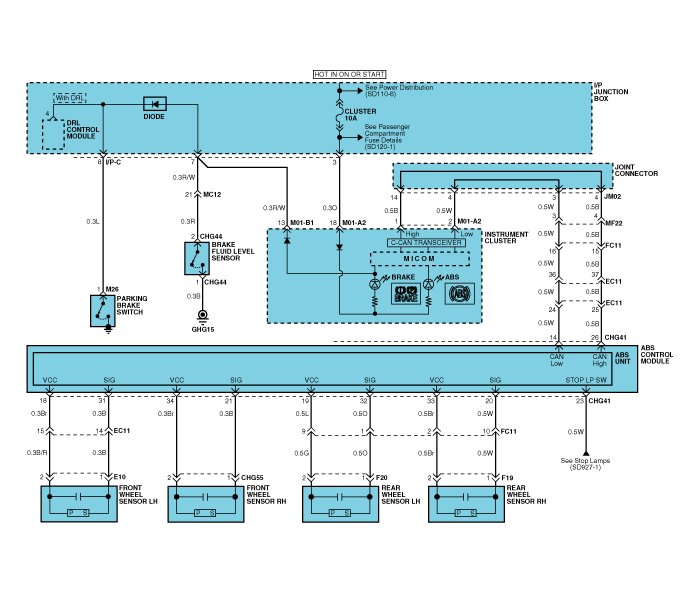

Circuit Diagram - ABS(1)

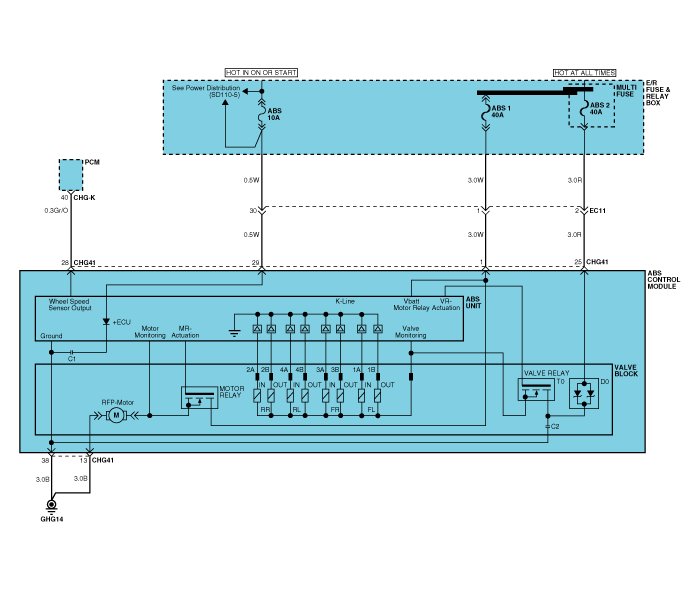

Circuit Diagram - ABS(2)

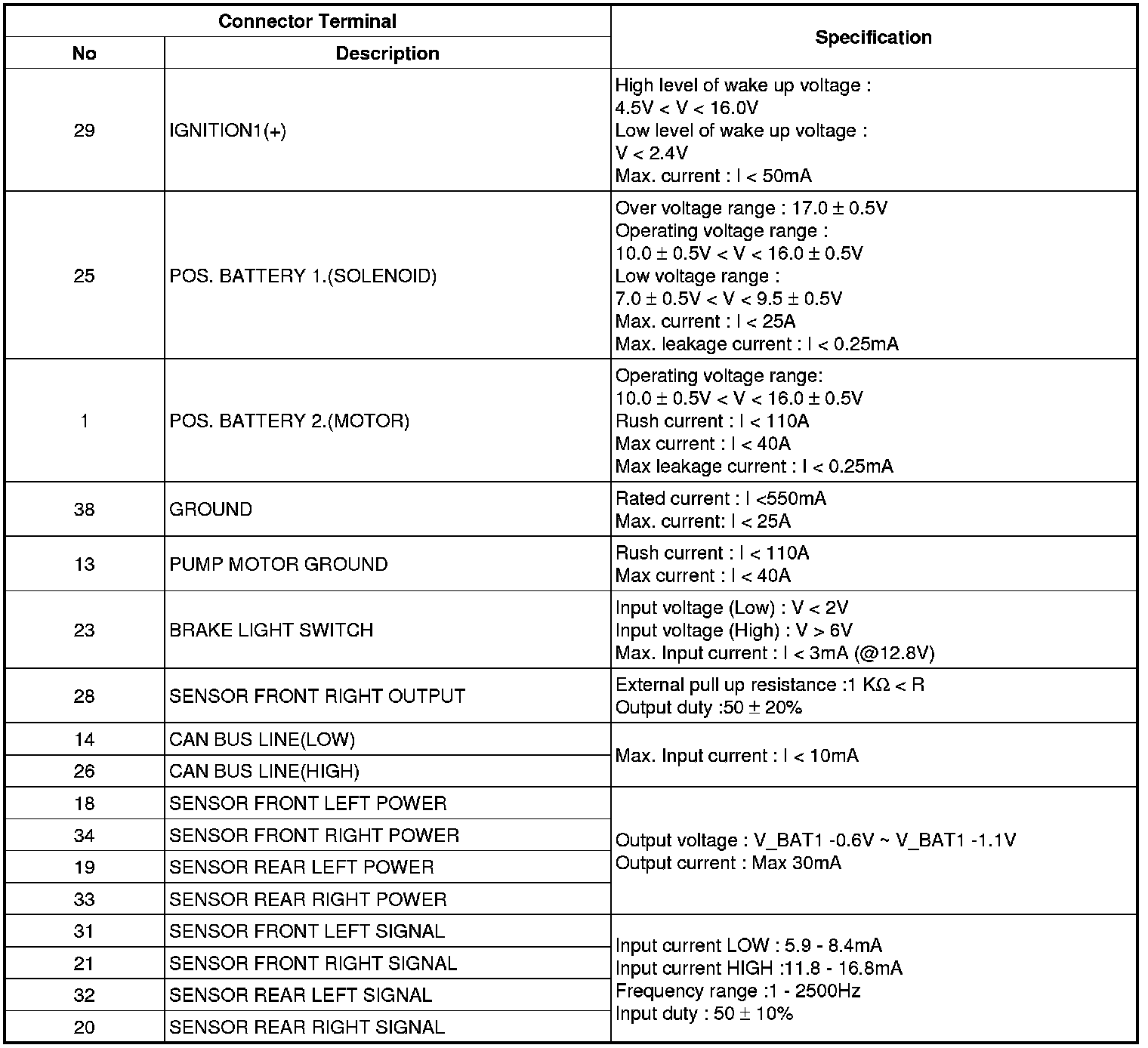

ABS connector input/output
