Cabin Air Filter / Purifier: Service and Repair

Replacement

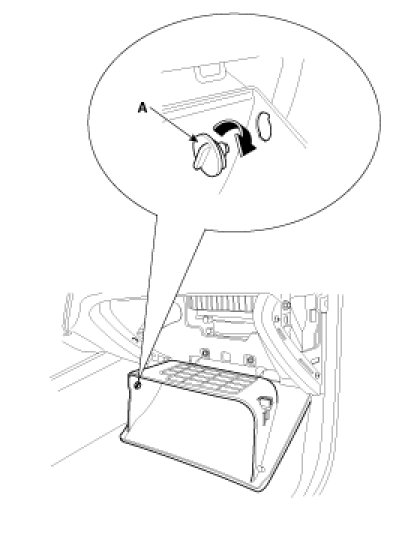

1. Disconnect the damper (A) from the glove box.

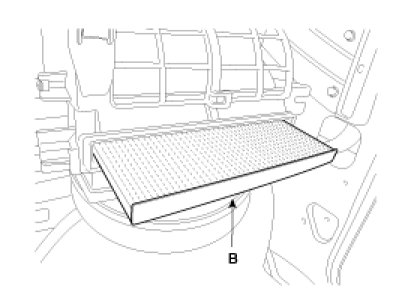

2. Replace the air filter (B), install it after making sure of the direction of air filter.




3. Installation is the reverse order of removal.

NOTE:
- In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.
