Repair Procedures

Inspection

Lighting Switch Inspection

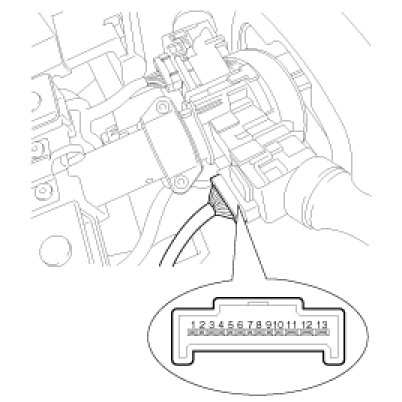

1. With the multi function switch in each position, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch





Lighting Switch

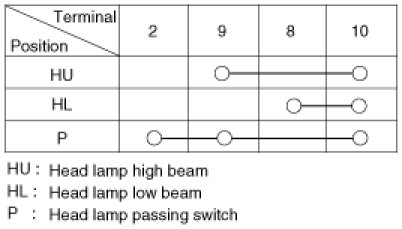

Dimmer And Passing Switch

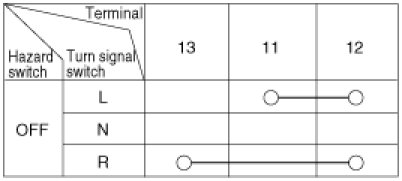

Turn Signal Switch





Front Fog Lamp





Wiper And Washer Switch Inspection

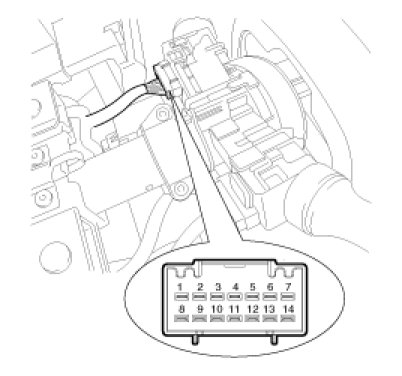

1. With the multi function switch in each position, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch.

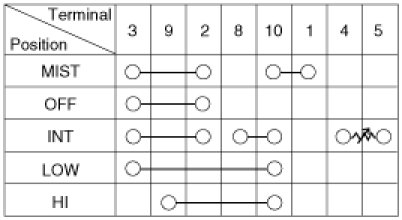

Wiper Switch





Washer Switch






Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the steering column upper(A) and lower(B) shrouds after removing 3 screws.

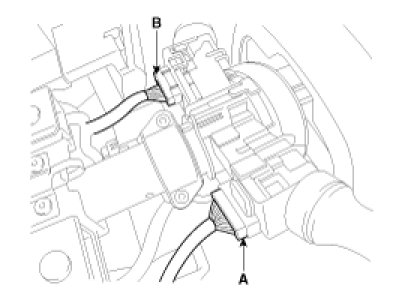

3. Disconnect the light switch connector(A) and the wiper switch connector(B).




4. Remove the wiper switch(A) by pushing the lock pin(B).

NOTE:
when removing the wiper & washer switch only, release the lock of wiper switch without removing the steering wheel.

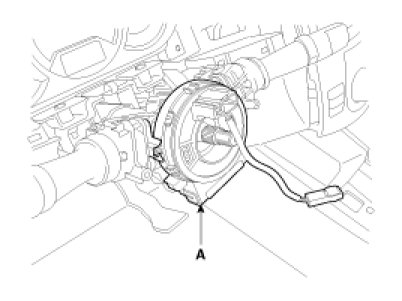

5. Remove the clock spring(A).

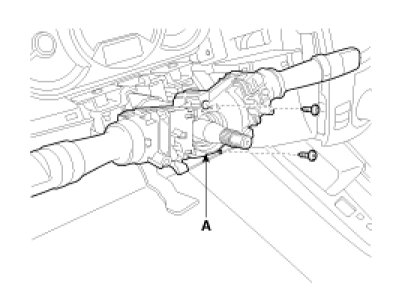

6. Loosen the screws from the multifunction switch assembly(A).




7. Remove the multifunction switch assembly(A).

Installation

1. Install the multifunction switch.
2. Install the clock spring.
3. Install the steering column upper and lower shrouds.
4. Install the steering wheel.
