Home >> Kia >> 2012 >> Forte L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> GF21

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

GF21

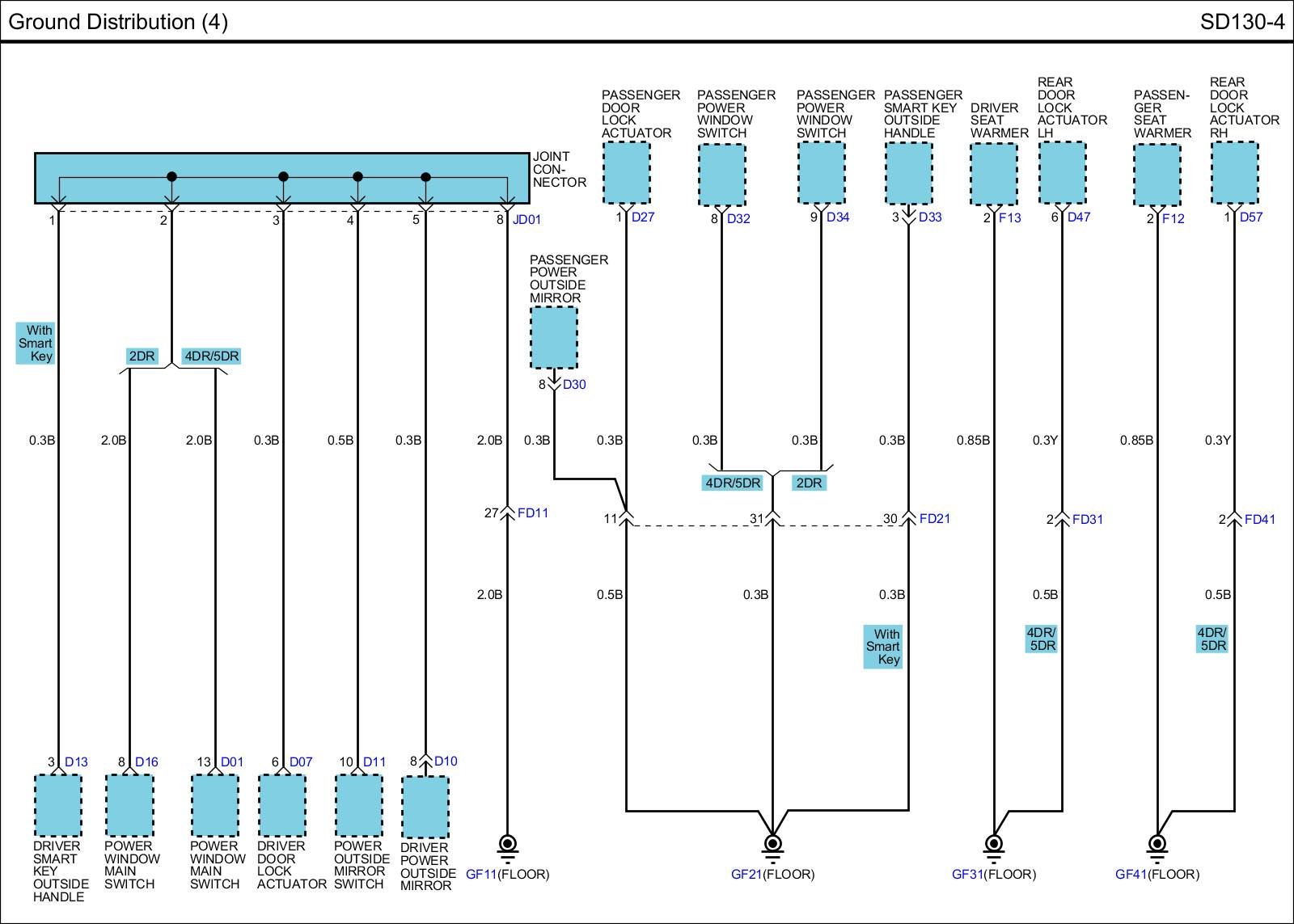

SD130-4 Ground Distribution (4):
