Component Inspection

Brake light switch Check
1. Ignition "OFF" & Engine "OFF".
2. Disconnect the stop lamp switch connector.
3. Measure resistance between power terminal and signal terminal of the stop lamp switch connector.
  Specification :

  Resistance between terminals of the stop lamp switch - ∞Ω (when the plunger is pushed down), 0Ω (when the plunger isn't pushed down).

  Resistance between the terminals of the brake switch - ∞Ω (when the plunger is not pushed down), 0Ω (when the plunger is pushed down).

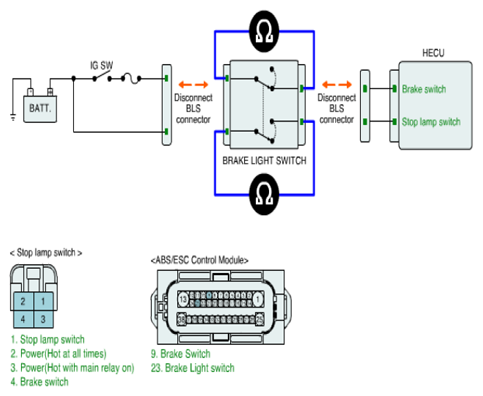

  Fig 1: Measuring Resistance Between Power Terminal & Signal Terminal Of Stop Lamp Switch Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured value within specifications?
  YES
  - Fault is intermittent caused by poor connection in brake light switch harness and/or HECU's connector.
    Go to VERIFICATION OF VEHICLE REPAIR procedure.
  NO
  - Substitute with a known-good brake light switch and check for proper operation.
    If problem is corrected, replace brake light switch and then go to VERIFICATION OF VEHICLE REPAIR procedure.
