Components and Components Location: Components

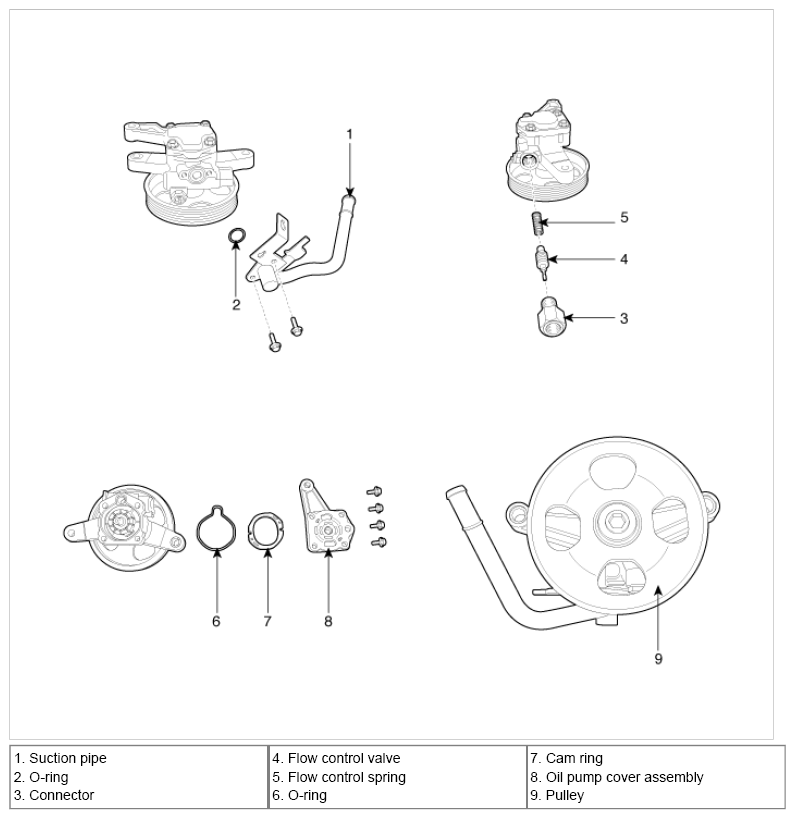

Fig 1: Power Steering Oil Pump Components
G07368261Courtesy of KIA MOTORS AMERICA, INC.
