Repair Procedures: Removal

Remove the battery and the battery tray. Refer to BATTERY .
Remove the under cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug. Refer to HYDRAULIC SYSTEM (FLUID) .
Remove the valve body cover (B) and eyebolt (A).
Tightening torque:
1. 34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.6 lb-ft)
2. 13.8 ~ 14.7 N.m (1.3 ~ 1.5 kgf.m, 9.4 ~ 10.8 lb-ft)
CAUTION: Always replace the gasket of the eyebolt use new one whenever loosening eyebolt.

Fig 2: Valve Body Cover & Eyebolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

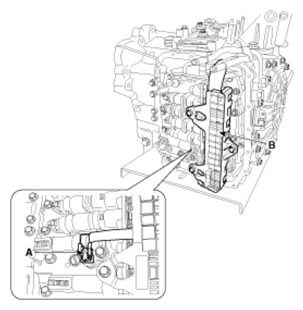

Fig 3: Oil Temperature Sensor & Solenoid Valve Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the valve body assembly (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 4: Valve Body Assembly
Courtesy of KIA MOTORS AMERICA, INC.
