Home >> Kia >> 2012 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Underdrive Brake Control Solenoid Valve (UD/B_VFS) >> Schematic Diagrams >> Circuit Diagram
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Circuit Diagram

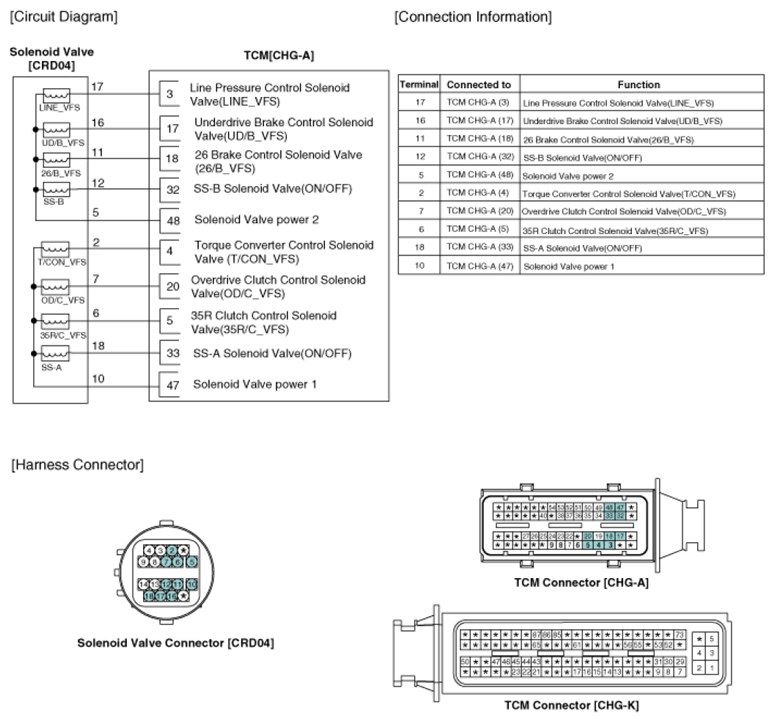

Fig 1: Underdrive Brake Control Solenoid Valve Circuit Diagram & Connector Terminal Identification
G07368026Courtesy of KIA MOTORS AMERICA, INC.
