Repair procedures: Removal

Shift Lever Assembly Replacement

1. Remove the floor Interior console assembly. For coupe, refer to INTERIOR (CONSOLE) . For sedan, refer to CONSOLE .

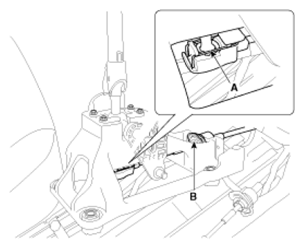

2. Remove the select cable (B) by removing the snap pin (A).
   Fig 1: Select Cable & Snap Pin

   Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the shift lever assembly (B) by removing the bolts (A-4ea).

   Tightening torque:

   8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

   Fig 2: Shift Lever Assembly Mounting Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
4. Remove the shift cable (B) by removing the clip (A).
   Fig 3: Shift Cable & Clip

   Courtesy of KIA MOTORS AMERICA, INC.
5. Installation is the reverse of removal.
   NOTE:

   • Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.

Shift Cable Replacement

1. Remove the floor Interior console assembly. For coupe, refer to INTERIOR (CONSOLE) . For sedan, refer to CONSOLE .
2. Remove the select cable (B) by removing the snap pin (A).
   Fig 4: Select Cable & Snap Pin

   Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the shift lever assembly (B) by removing the bolts (A-4ea).

   Tightening torque:

   8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

   Fig 5: Shift Lever Assembly Mounting Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
4. Remove the shift cable (B) by removing the clip (A).
   Fig 6: Shift Cable & Clip

   Courtesy of KIA MOTORS AMERICA, INC.
5. Remove the retainer (A) and nuts (B).

   Tightening torque:

   11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

   Fig 7: Shift Lever Assembly Retainer & Nuts

   Courtesy of KIA MOTORS AMERICA, INC.
6. Disconnect the select or shift cable assembly (B) after removing the pin (A).
   Fig 8: Select Or Shift Cable Assembly & Pins

   Courtesy of KIA MOTORS AMERICA, INC.
7. Remove the shift cable and select cable at cabin room.
